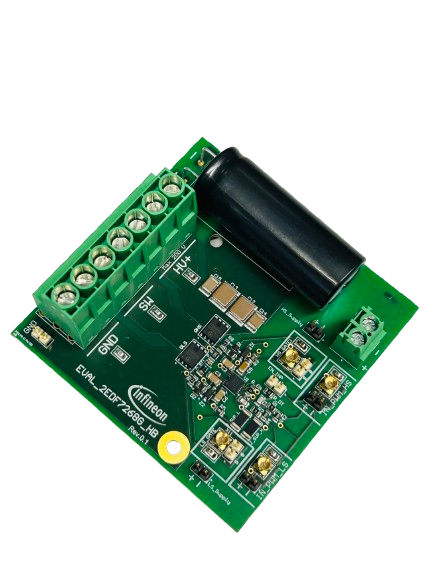

EVAL_2EDF7268G_HB
Active and preferred
RoHS Compliant

EVAL_2EDF7268G_HB

Evaluation Board for 2EDF7268G - Compact 1500 V rms dual-channel isolated gate driver in 4x4 14pin VSON with Thermal Pads
User Manual
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL_2EDF7268G_HB
EVAL_2EDF7268G_HB
ea.
User Manual

Product details

  • Board Type
    Evaluation Board
  • Description
    Evaluation Board for 2EDF7268G - Compact 1500 V rms dual-channel isolated gate driver with 5 A / 9 A output current in 4x4 14pin VSON with Thermal Pads
  • Dimensions
    77 mm x 77 mm
  • Family
    Gate Driver
  • Frequency max
    2 MHz
  • Input Type
    DC
  • Qualification
    Industrial
  • Sub Application
    Industrial
  • Supply Voltage range
    6.5 V to 10 V
  • Target Application
    Power tools, Low-voltage drives, DC-DC power conversion for telecommunications infrastructure, Microinverter solutions, Power optimizer solutions, Industrial power supplies
  • Topology
    Half Bridge
Recommended
OPN
EVAL2EDF7268GHBTOBO1
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The EVAL_2EDF7268G_HB evaluation board is designed to be used by engineers to evaluate the 2EDF7268G EiceDRIVER™ isolated gate driver ICs and discrete power switches from Infineon in a half-bridge configuration. The generic half-bridge topology is configurable for boost or buck operation, double-pulse testing or continuous PWM operation at full power.

Features

  • 2EDF7268G isolated gate driver ICs
  • BSC600N25NS3 G 250 V OptiMOS™ MOSFETs
  • Compact and thermally capable solution
  • Reliable at high switching frequencies

Benefits

  • Layout for optimal switching performance
  • Half Bridge configuration
  • Easy measurement and confirguration
  • Includes HAQ-10T Heatsink
