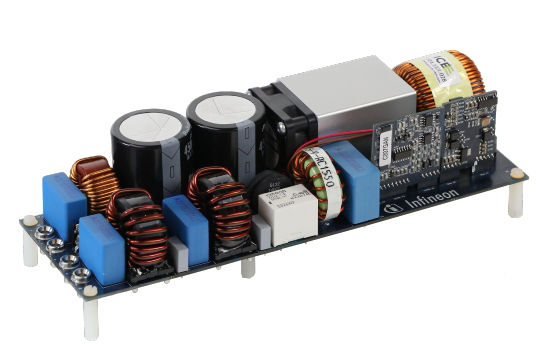

EVAL_2500W_PFC_GAN_A

2500W full-bridge totem-pole PFC using CoolGaN™ 600V e-mode HEMT
Application Notes
board

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

EVAL_2500W_PFC_GAN_A
EVAL_2500W_PFC_GAN_A
Application Notes

Product details

  • Board Type
    Evaluation Board
  • Family
    High/Low Side Switch, MOSFET, Gate Driver, CoolSET™, CoolGaN™
  • Input Type
    AC
  • Output Voltage
    0 V to 390 V
  • Product Name
    EVAL_2500W_PFC_GAN_A
  • Sub Application
    datacenter, hyperscale datacenter, Telecom rectifiers, server PSU
  • Supply Voltage
    90 V to 265 V
  • Target Application
    Power Supplies
  • Topology
    Full Bridge, PFC
Recommended
OPN
EVAL2500WPFCGANATOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant No
Infineon stock last updated:

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The 2.5kW CCM full-bridge PFC system relies on Infineon’s CoolGaN™ technology to achieve over 99 percent system efficiency, suitable for server power supplies or telecom rectifiers. It features CoolGaN™ 600V e-mode HEMTs, CoolMOS™ C7 Gold superjunction MOSFET, and EiceDRIVER™ gate driver ICs. Operating with an input voltage range of 90 to 265 VAC and an output voltage of 390 VDC, it utilizes surface mount devices for enhanced assembly efficiency.

Features

  • Flat efficiency: >99%

Benefits

  • For high efficiency
  • For high power density server PSU
  • For telecom rectifiers
  • High efficiency, low-cost BOM PFC

Applications
