DEMO_IMR_BMSCTRL_V1

Demo board for BMS control, utilized in Infineon Mobile Robot (IMR)
User Manual
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

DEMO_IMR_BMSCTRL_V1
DEMO_IMR_BMSCTRL_V1
ea.
User Manual

Product details

  • Board Type
    Demo Board
  • Configuration
    BSD235N, IRLML6401TRPBF
  • Description
    Demo board for BMS control, utilized in Infineon Mobile Robot (IMR)
  • Dimensions
    15x80x80 mm
  • Input Type
    DC
  • Interfaces
    Card edge connector, 2.54 mm pitch
  • Qualification
    Consumer, Industrial
  • Sub Application
    IMR
  • Supply Voltage
    3.3 V to 3.3 V
  • Target Application
    Robotics
Recommended
OPN
DEMOIMRBMSCTRLV1TOBO1
Product Status active and preferred
Infineon Package --
Package Name N/A
Packing Size 1
Packing Type CONTAINER
Moisture Level N/A
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package --
Package Name -
Packing Size 1
Packing Type CONTAINER
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

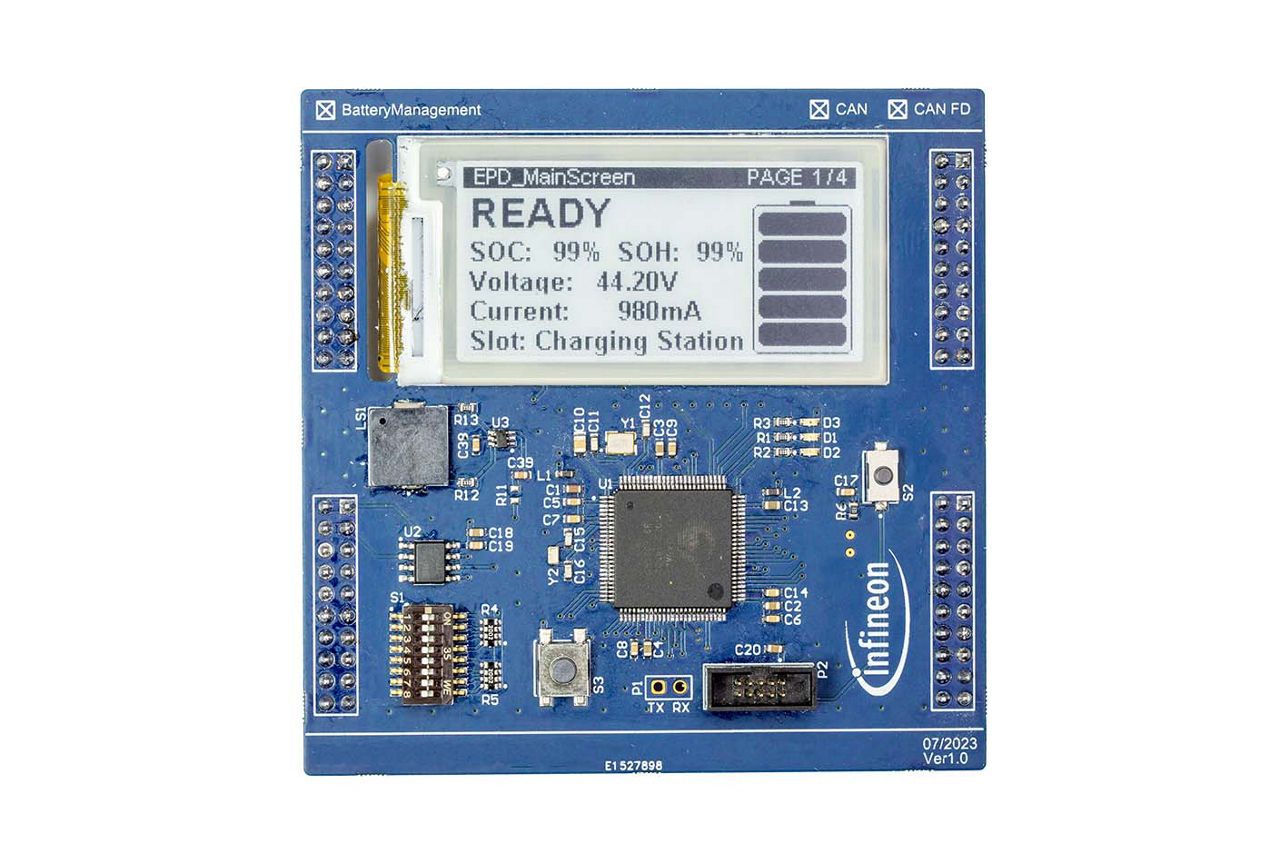

This demo board for 12S battery cells, led by our TLE9012DQU Li-ion battery monitoring and balancing IC, features advanced cell monitoring and balancing, cutting edge temperature management, the latest safety functionality including SoC and SoH, and an extensible and non-blocking software layout. It is is delivered in a modular design by combining the DEMO_IMR_BMSPWR_V1 power board and the DEMO_IMR_BMSCTRL_V1 controller board (on this page).

Features

  • Combination of Arm® Cortex®-M4/M0+ CPUs
  • Designed to estimate SoC and SoH
  • Low-power Flash technology,
  • Programmable digital & analog resources
  • Extensible, non-blocking software layout
  • 30 V – 50.4 V voltage range

Benefits

  • 1MBit/s CAN - 5MBit/s CAN FD data rates
  • Audio feedback signals battery state
  • Low-power ePaper display
  • Long-term data display at power off

Bill of Material
