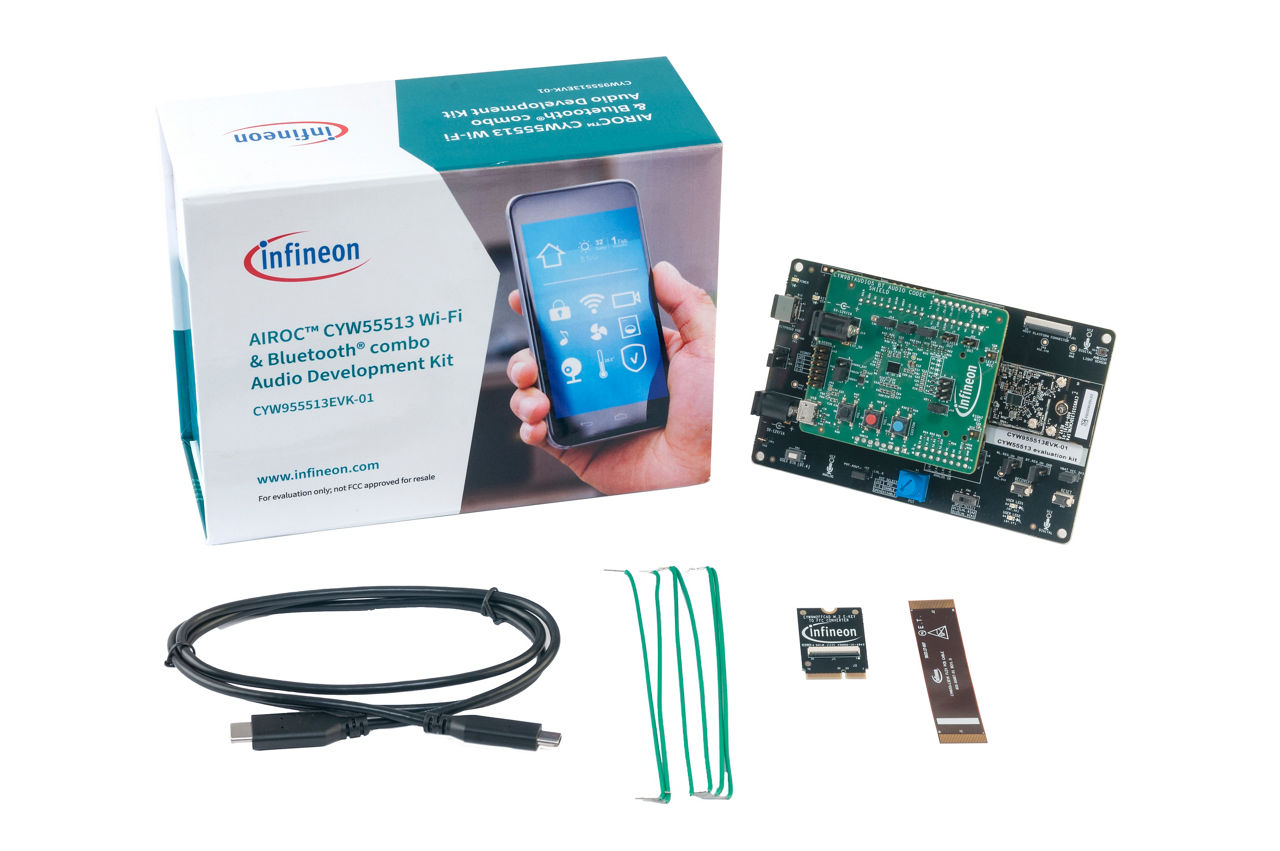

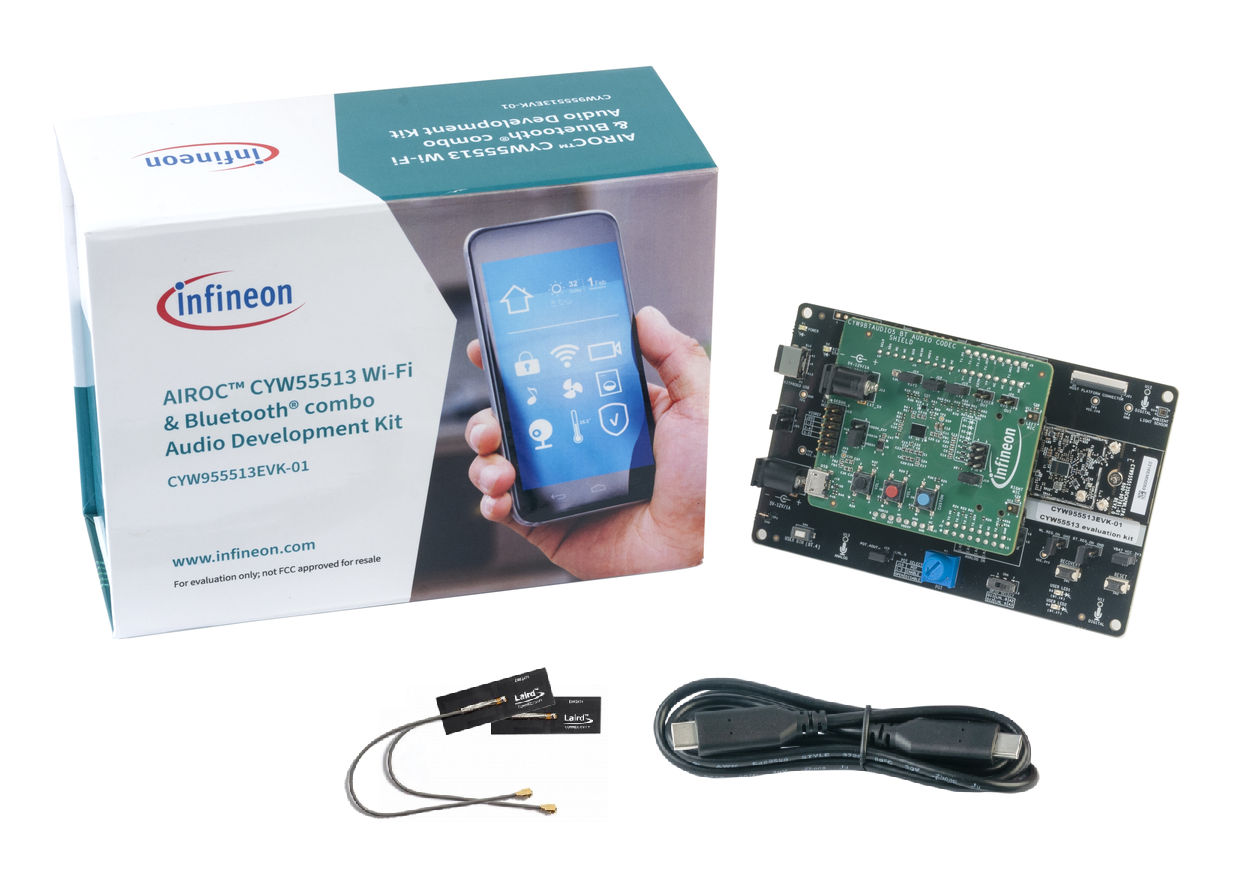

CYW955513EVK-01

Bluetooth Embedded Audio Evaluation Kit (CYW955513EVK-01) for AIROC™ CYW55513/2/1 1x1 Wi-Fi 6E and Bluetooth® 5.4/Bluetooth® Low-Energy Audio Combo IC

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

CYW955513EVK-01
CYW955513EVK-01

Product details

  • Board Type
    Evaluation Board
  • Connectivity
    Wi-Fi/Bluetooth
  • Description
    Bluetooth Embedded Audio Evaluation Kit (CYW955513EVK-01) for AIROC™ CYW55513/2/1 1x1 Wi-Fi 6E and Bluetooth® 5.4/Bluetooth Low-Energy Audio Combo IC
  • Family
    Wi-Fi 6/6E (802.11ax)
  • Target Application
    General IoT
OPN
Product Status
Infineon Package
Package Name
Packing Size
Packing Type
Moisture Level
Moisture Packing
Lead-free
Halogen Free
RoHS Compliant
Infineon stock last updated:
The Infineon Embedded Audio Evaluation Kit (CYW955513EVK-01) enables the evaluation, prototyping, and development of embedded audio on the Arm® Cortex® -M33 of the AIROC™ CYW55513/2/1 Wi-Fi and Bluetooth® and Low Energy (LE) Audio Combo IC.

Features

  • 192 MHz Arm® Cortex®-M33
  • Embedded Bluetooth/BLE Audio support
  • Supports Bluetooth stack and profiles
  • Supports LC3 Codec
  • Bluetooth® Low Energy 5.4 features
  • LE Long Range, LE 2Mbps, Adv. Ext.
  • +13/+19 Bluetooth Power Amplifiers
  • -111.5dBm LE Long-Range Sensitivity
  • 2x TDM (I2S/PCM) Audio Interface
  • Up to 8-channels of audio
  • 8k to 96k sample rates
  • 16-, 24- and 32-bit sample widths

Benefits

  • Embedded operation offloads host
  • Frees up host processor resources
  • Supports Bluetooth and BLE Audio
  • Low-power operation extends battery life
  • 19dBm transmit power extends range
  • Best in class sensitivity extends range
  • Flexible audio interface

Applications
