Active and preferred
RoHS Compliant

CYW954907AEVAL1F

CYW954907AEVAL1F Evaluation Kit
User Manual
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

CYW954907AEVAL1F
CYW954907AEVAL1F
ea.
User Manual

Product details

  • Board Type
    Evaluation Board
  • Connectivity
    WiFi
  • Core
    Arm Cortex-R4
  • Hardware Compatibility
    Arduino Uno
  • Input Type
    DC
  • Programming/Bridging
    USB-UART
  • Qualification
    Industrial, Consumer
  • Software Support
    ModusToolbox
  • Target Application
    Industrial automation, Home entertainment, Wearables
  • WiFi Standard
    a/b/g/n, .ac
Recommended
OPN
CYW954907AEVAL1F
Product Status active and preferred
Infineon Package N/A
Package Name N/A
Packing Size 1
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package N/A
Package Name -
Packing Size 1
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

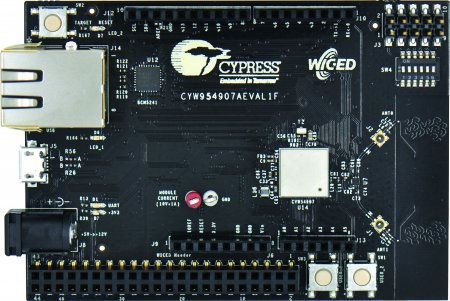

The Cypress CYW954907AEVAL1F Evaluation kit facilitates the evaluation and development of single-chip Wi-Fi applications using the CYW54907 device. This kit is based on a module featuring the CYW54907, which is a single-chip 802.11ac dual-band Wi-Fi SoC with a 320-MHz Arm® Cortex®-R4 MCU and various on-chip interfaces. It offers a small-footprint IoT solution and supports Arduino compatibility for quick prototyping with off-the-shelf shields.

Features

  • CYW54907 based module
  • On-board PCB antenna w/ external option
  • Arduino headers for expansion
  • Custom GPIO headers
  • User switches and LEDs
  • Onboard USB Programmer/debugger
  • 5V / 12V input via USB or AC adapter
  • CYW954907AEVAL1F Evaluation board
  • USB Standard-A to Micro-B cable
  • Quick Start Guide

Applications
