CARKIT 8T8R CENTR

NEW
RASIC™ CTRX 77 GHz 8Tx 8Rx ADAS radar evaluation kit designed for centralized architecture development and equipped with a serializer.

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

CARKIT 8T8R CENTR
CARKIT 8T8R CENTR

Product details

  • Antenna
    External
  • Bandwidth
    4 GHz
  • Board Type
    Evaluation Board
  • Centralized
    Yes
  • Family
    77/79 GHz radar sensors
  • Max Detection Range
    >380 m
  • Motion
    Yes
  • Number of Rx Antennas
    8
  • Number of Tx Antennas
    8
  • Point cloud
    No (Raw data streaming over coax)
  • Qualification
    Automotive
  • Speed [m/s]
    Yes
  • Target Application
    Front radar, Corner radar, Imaging radar for AEB, ACC, LCA, Parking
  • Temperature Range
    -40 to +140°C
OPN
ADASCARKIT2C0G1TOBO1
Product Status on request
Infineon Package LG-MADK-1
Package Name N/A
Packing Size N/A
Packing Type N/A
Moisture Level NA
Moisture Packing N/A
Lead-free No
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status on request
Infineon Package LG-MADK-1
Package Name -
Packing Size 0
Packing Type
Moisture Level NA
Moisture Packing
Lead Free
Halogen Free
RoHS Compliant

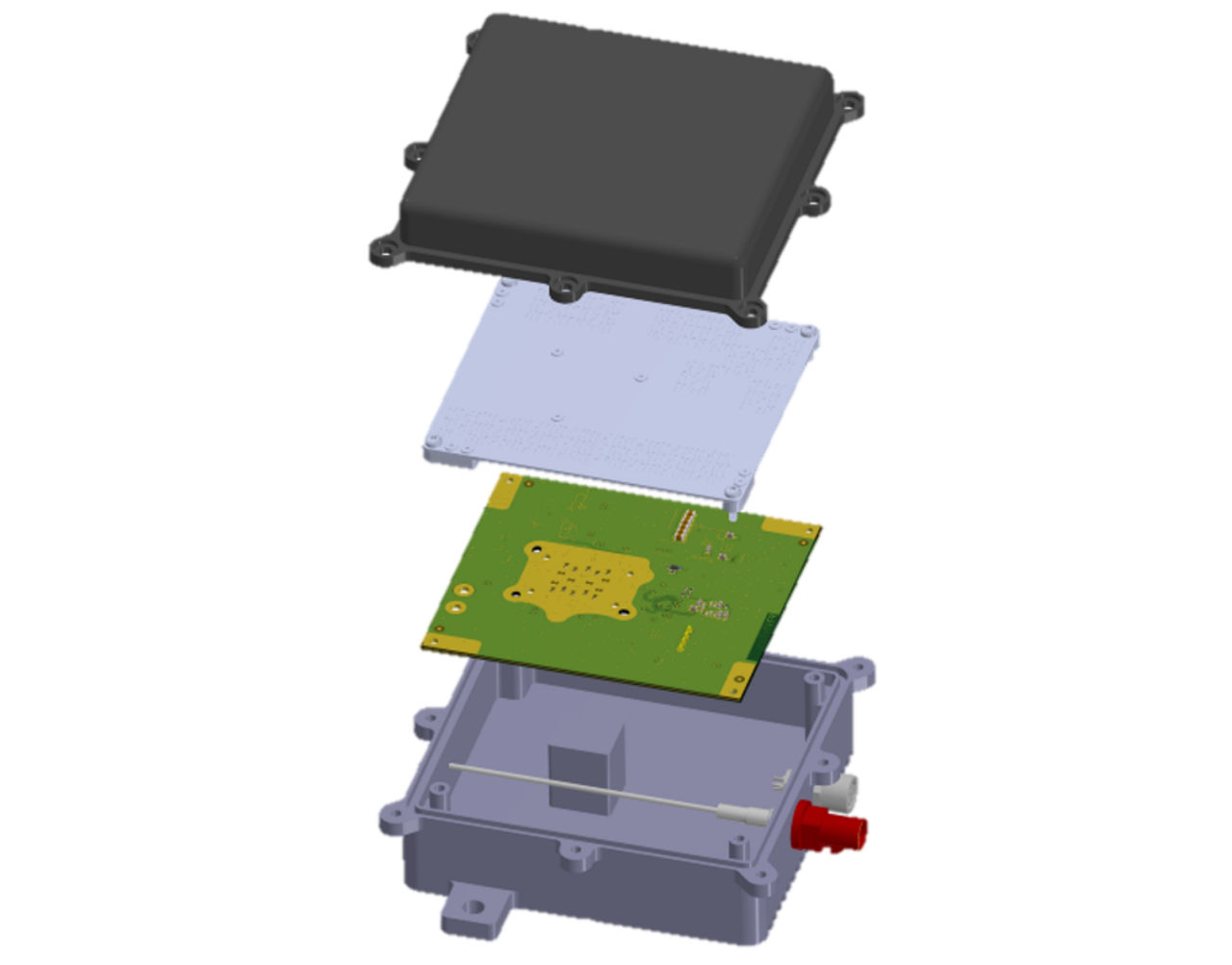

The CARKIT 8T8R CENTR is a 77 GHz 8Tx 8Rx ADAS radar evaluation kit equipped with a high speed serializer, enabling full raw radar data transmission over long cables to a central compute unit. It is designed for rapid prototyping, end-to-end processing, and to accelerate the development of centralized radar modules.

Features

  • 8 transmit and 8 receive channels
  • Long detection range up to 380m for cars
  • 4D radar with 2.5° angular resolution
  • 5 Gbps interface for raw ADC data
  • Detachable waveguide antenna
  • IPX4 water resistance protection
  • Software for setup and data output
  • Integrated heat sink for cooling
  • Serializer for raw data interface

Benefits

  • Small form factor 97x84x53 mm³
  • Ready for vehicle mounting
  • Enables rapid ADAS prototyping
  • Ready for drive tests
  • Easy to use full radar module
  • Centralized proof of concept
