TLE9241QU

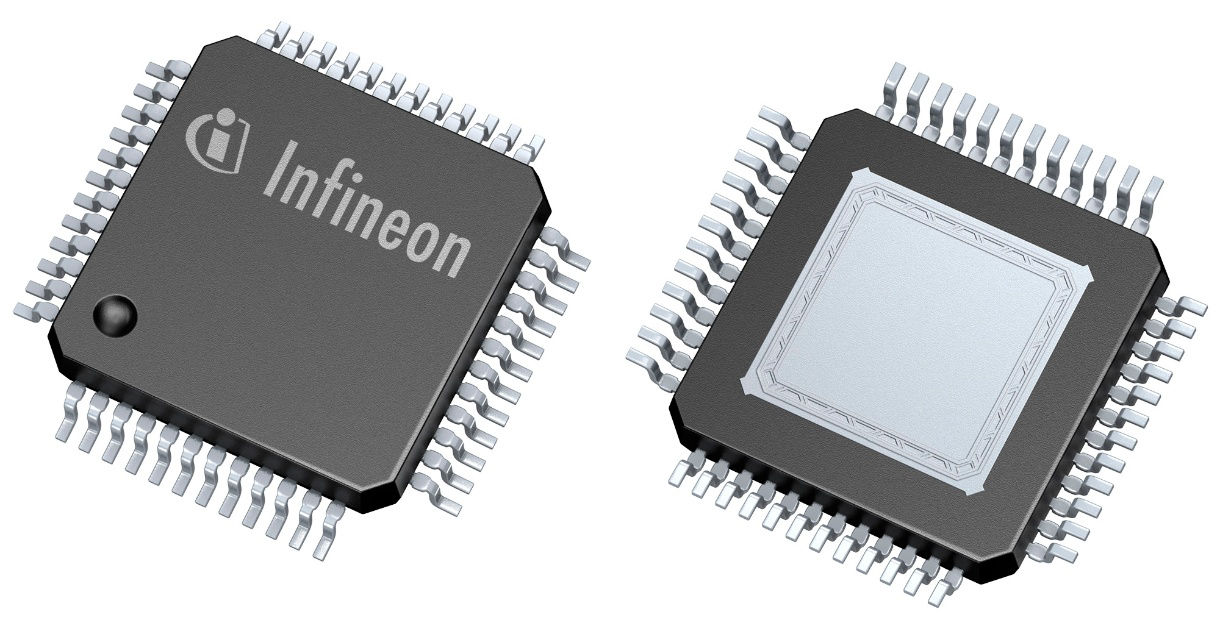

The TLE9241QU is an integrated circuit (IC) for use in automatic transmission control modules
Data Sheet
package
board

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE9241QU
TLE9241QU
Data Sheet

Product details

  • Channels
    2
  • Comments
    8 input interfaces for two-wire Hall Effect sensors, 3 high-side gate drivers including reverse polarity protection
  • Operating Voltage
    5.5 V to 40 V
  • Planned to be available until at least
    2037
  • Quiescent Current
    0,015 mA
  • SPI
    16 Bit
Recommended
OPN
TLE9241QUXUMA1
Product Status active and preferred
Infineon Package
PG-TQFP-48
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-TQFP-48
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
The device allows flexible control with two gate drive outputs for module power-off during sleep mode using a reverse polarity-protected high-side switch. Two high-side gate drive channels control "safety" switches for transmission solenoid power. It supports eight two-wire Hall Effect sensors, four for position/speed sensors and four for position sensors.

Features

  • Sensor state status available by SPI
  • Digital O/P for speed& direction sensing
  • Two high-side gate drive channels
  • High-side gate drive channel for driving
  • Integrated charge pump
  • 16 bit SPI interface

Benefits

  • Efficient,Compact,and Simplified Design.

Applications
