XDPP1188-200C

NEW

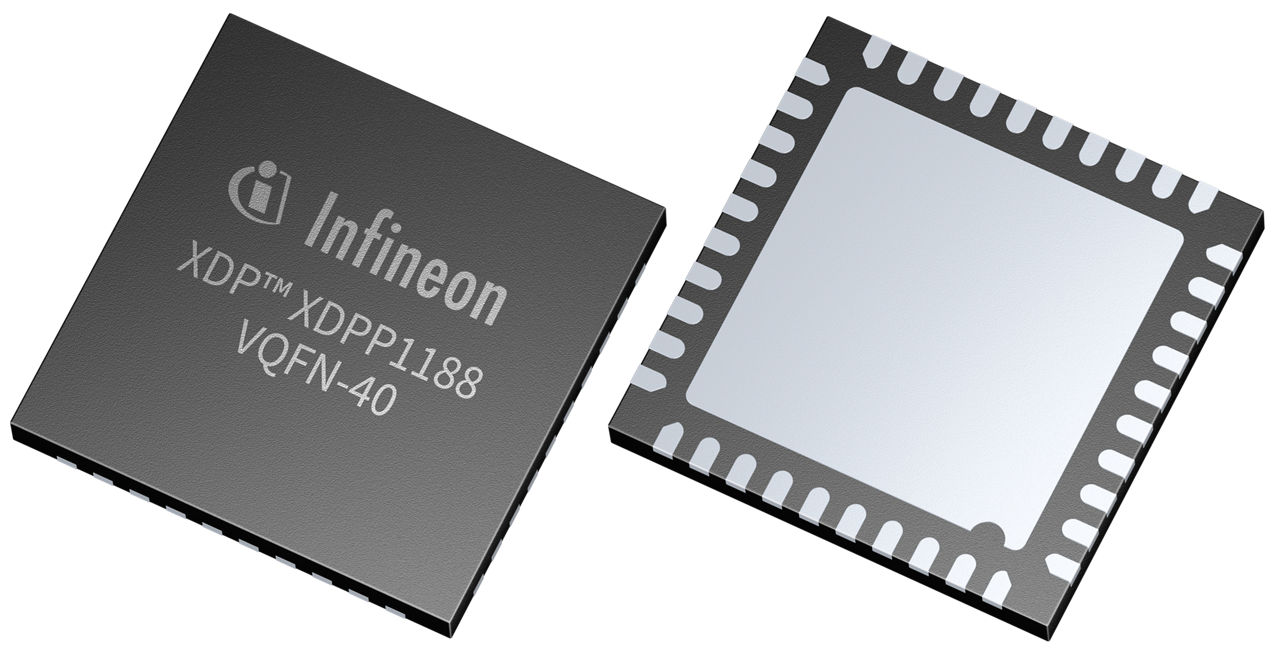

XDP™ digital power controller with 8-PWM outputs for DC-DC conversions in a VQFN-40 5x5 package
Data Sheet
package
board

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

XDPP1188-200C
XDPP1188-200C
Data Sheet

Product details

  • Communication Interfaces
    I2C, PMBUS, UART, SPI
  • DPWM Resolution
    78.125 ps
  • I-ADC
    2
  • Memory
    80kB ROM, 32kB RAM, 64kB OTP
  • Package
    PG-VQFN-40
  • PWM Frequency max
    2 MHz
  • PWM Outputs
    8
  • Supply Voltage
    3.3 V
  • V-ADC
    2
OPN
XDPP1188200CXUMA1
Product Status coming soon
Infineon Package
PG-VQFN-40
Package Name N/A
Packing Size 4000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status coming soon
Infineon Package
PG-VQFN-40
Package Name -
Packing Size 4000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
XDPP1188-200C expands the XDP™ digital power controller portfolio and is suitable for isolated or non-isolated modern high-density, high-power systems. The high-performance AFE, state-machine-based digital control loop & Arm® Cortex® core integrated into a 5x5 40-pin VQFN package enables high power quality & flexible power supply designs. It supports resonant LLC, all relevant fixed-frequency & Bridge-type as well as interleaved PWM topologies.

Features

  • High-performance current & voltage ADCs
  • Up to 8 high-resolution PWM outputs
  • Supports PWM and PFM control loop
  • Hardware-based feed-forward control
  • Current sense, high tracking slew rate
  • 80 kB ROM, 32 kB RAM, 64 kB OTP memory
  • Firmware-based system configuration
  • 100 MHz, 32 bit ARM® Cortex®-M0 processor
  • I2C/PMBus 1.4, UART, and SPI interface
  • VQFN-40 5 mm x 5 mm with 0.4 mm pitch

Benefits

  • Allows Firmware-based customization
  • Excellent dynamic transient performance
  • Pre-programmed control for fast T2M
  • Pre-bias startup with SR or DE mode
  • Low power consumption in sleep mode
  • Housekeeping with configurable GPIOs
  • Light load management
  • Small system solution size
