XDPL8219

Digital high-power-factor XDP™ controller for cost-effective, dual-stage LED drivers with secondary-side regulated constant voltage output
Data Sheet
package
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

XDPL8219
XDPL8219
ea.
Data Sheet

Product details

  • Comments
    Digital flyback controller with power factor corrected, low THD and constant voltage output
  • Switching Frequency min
    26.9 kHz
  • Technology
    Flyback
  • Topology
    HPF Flyback
Recommended
OPN
XDPL8219XUMA1
Product Status active and preferred

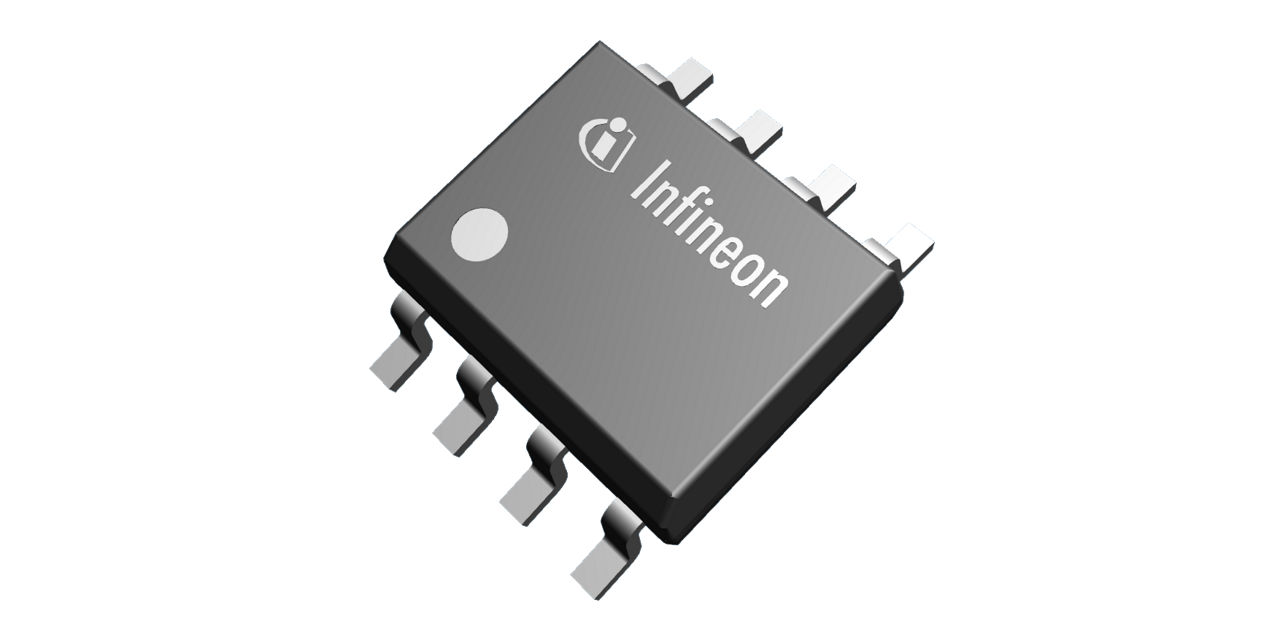

Infineon Package
PG-DSO-8
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-DSO-8
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The XDP™ digital power XDPL8219 is a high-performance secondary-side regulated flyback controller with high power factor and constant voltage output. The device operates in quasi-resonant mode (QRM) to maximize the efficiency and minimize the electromagnetic interference (EMI) over a wide load range. It enters active burst mode (ABM) at light load to prevent audible noise from being heard, while achieving no-load standby power as low as <100mW.

Features

  • Flyback controller with enhanced PFC
  • Enhanced total harmonic distortion
  • Standby power 100mW
  • Parameter reporting via uni-directional UART
  • Digitally configurable parameters
  • UL1310 safety feature

Benefits

  • High-performance and robust LED designs
  • Increased flexibility, minimized BOM
  • Shortened time-to-market
  • UART-enhanced intelligence reporting
