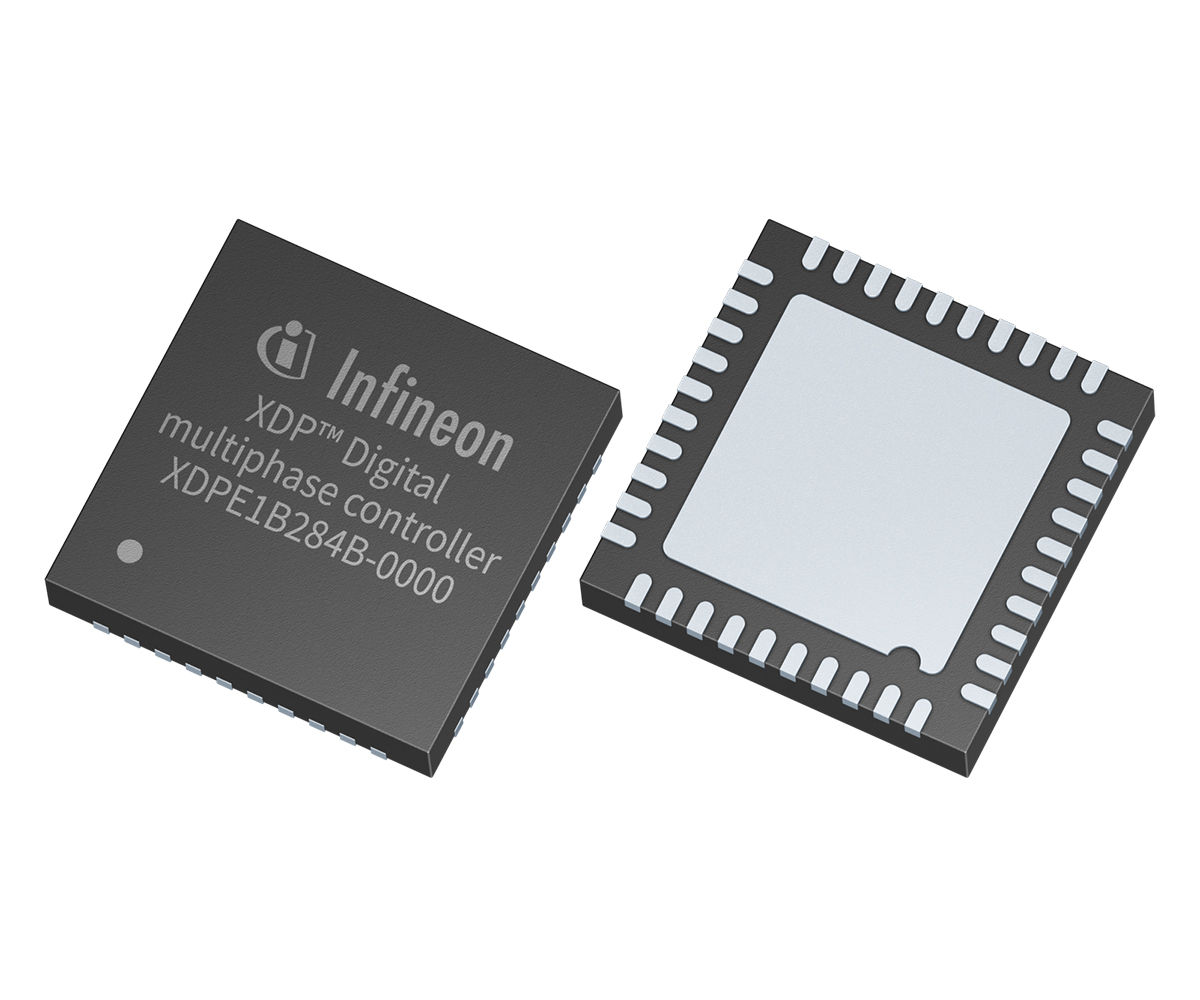

XDPE1B284B-0000

Digital dual loop 8-phase controller provides power for Intel VR14 server, workstation, and high-end desktop applications
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

XDPE1B284B-0000
XDPE1B284B-0000

Product details

  • Configuration
    8+0 to 0+8
  • Interfaces
    Intel VR13, VR13HC, VR14 SVID, AVS, PMBus
  • Maximum Phases
    8
  • Moisture Sensitivity Level
    MSL1
  • Package
    QFN 5x5 40-pin
  • Qualification
    Industrial
  • Switching Frequency range
    250 kHz to 3000 kHz
  • Voltage Outputs range
    0.05 to 3.1
Recommended
OPN
XDPE1B284B0000XTMA1
Product Status active and preferred
Infineon Package
PG-VQFN-40
Package Name N/A
Packing Size 4000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-VQFN-40
Package Name -
Packing Size 4000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
XDPE1B284B phase configuration is flexible in how the 8 phases are allocated to the 2 loops. Command and monitoring functions are controlled through the PMBus, AVS and SVID interfaces which supports dynamic voltage identification with 1 mV/step in AVS mode or 5 mV/step or 10 mV/step in Intel mode, output range up to 3.1 V, offset and trim resolution of 625 uV and accuracy better than 0.5%.

Features

  • Compliant with Intel VR13/HC, and VR14
  • Compliant with AVSbus & PMBus Rev 1.3
  • Digitally controlled phasing
  • TLVR inductor support
  • Differential output voltage sense
  • Fast current balancing with CM control
  • Digitally programmable PID
  • Digitally programmable loadline slope
  • Digital temperature compensation
  • Direct input 12 V voltage, current sense
  • Extensive fault detection, protection
  • Internal NVM

Benefits

  • Exellent transient response
  • Reduced BOM
  • Selectable autonomous phase add/drop
  • PMBus for telemetry and regulation
  • High speed phase current balance
  • Advanced monitoring and protection
  • Blackbox recording for troubleshooting
  • TLVR secondary Open/Short detection
