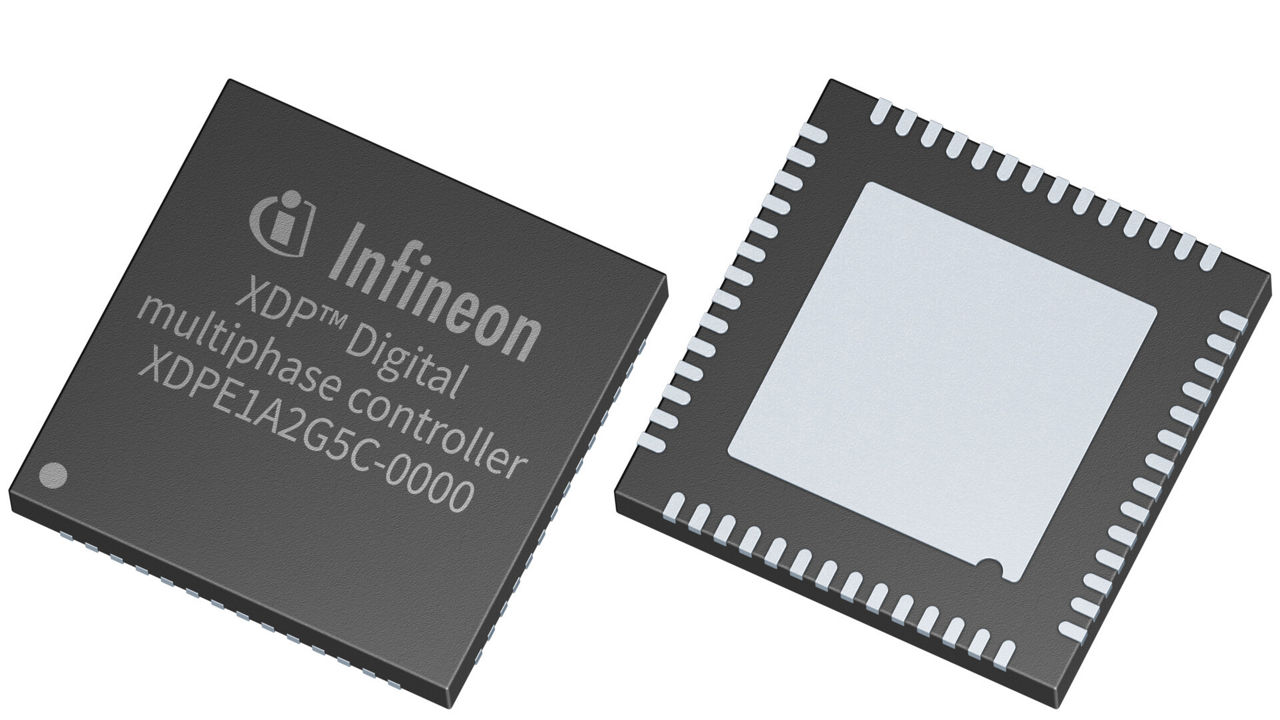

XDPE1A2G5C-0000

Digital dual loop 16-phase controller for applications using AVSBus
Data Sheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

XDPE1A2G5C-0000
XDPE1A2G5C-0000
Data Sheet

Product details

  • Configuration
    16+0 to 8+8
  • Interfaces
    PMBus rev 1.4, AVSBus
  • Maximum Phases
    16
  • Moisture Sensitivity Level
    MSL3
  • Package
    QFN 7x7 56-pin
  • Qualification
    Industrial
  • Switching Frequency range
    250 kHz to 3000 kHz
  • Voltage Outputs max
    2
  • Voltage Outputs range
    0.05 to 3.1
Recommended
OPN
XDPE1A2G5C0000XUMA1
Product Status active and preferred
Infineon Package
PG-VQFN-56
Package Name N/A
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-VQFN-56
Package Name -
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
XDPE1A2G5C digital dual loop 16 phase controller provides power for AI servers, workstations, and telecom applications that use AVSBUS. Typical configurations of 16+0, 15+1, and up to 8+8 are supported. Command and monitoring functions are controlled through the PMBus and AVS interfaces which supports dynamic voltage identification with 1 mV/step, output range up to 3.1 V, offset and trim resolution of 625 uV and accuracy above 0.5%.

Features

  • Supports AMD SVI3 Rev 3.1 interface CPUs
  • PMBus for telemetry and regulation
  • Improved thermal balance, reliability
  • Supports tight voltage regulation specs
  • AVSBus
  • Compliant with PMBus rev 1.4
  • Digitally controlled phasing
  • Differential output voltage sense
  • Fast current balancing with CM control
  • Digitally programmable PID
  • Digitally programmable loadline slope
  • Digital temperature compensation
  • Direct input 12 V voltage, current sense
  • Extensive fault detection, protection
  • Internal NVM

Benefits

  • Supports CPUs with AVSBus interface
  • PMBus for telemetry and regulation
  • Improved thermal balance, reliability
  • Supports tight voltage regulation specs
  • Advanced thermal management
  • Highest degree of design flexibility
  • Ultra-fast CPU load transient response
  • Reduced BOM
  • Measure the input power consumption
  • System reliability and robustness
  • High degree of customization

Applications

Documents

Documents

Design resources

Partner solutions

Developer community
