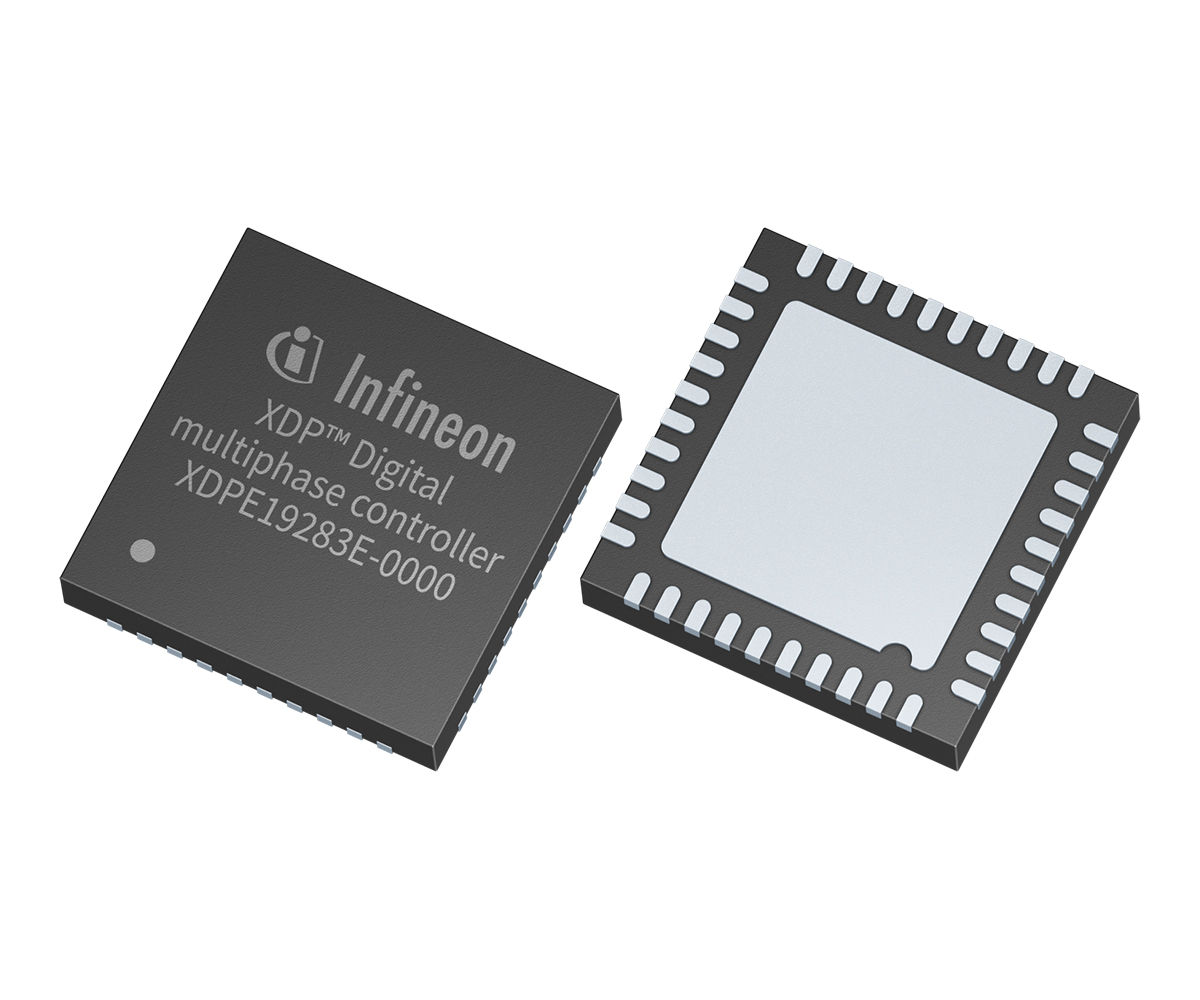

XDPE19283E-0000

Digital dual loop 8-phase controller for AMD SVI3 server, workstation, and high-end desktop applications
Data Sheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

XDPE19283E-0000
XDPE19283E-0000
Data Sheet

Product details

  • Configuration
    8+0 to 4+4
  • Interfaces
    AMD SVI3, PMbus
  • Maximum Phases
    8
  • Moisture Sensitivity Level
    1
  • Package
    QFN 5x5 40-pin
  • Qualification
    Industrial
  • Switching Frequency range
    250 kHz to 3000 kHz
  • Voltage Outputs
    2
  • Voltage Outputs range
    0.25 to 2.8
Recommended
OPN
XDPE19283E0000XTMA1
Product Status active and preferred
Infineon Package
PG-VQFN-40
Package Name N/A
Packing Size 4000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-VQFN-40
Package Name -
Packing Size 4000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
Core voltage is provided by a multi-phase buck regulator controlled by XDPE19283D that can be configured in one of the following phase combinations between the two loops: 8+0 to 4+4. Command and monitor functions are controlled through the SVI3 interface, supporting dynamic voltage changes (VOTF), power states (PS), and VR telemetry and status requirements. XDPE19283D provides the ultimate system solution in terms of flexibility and stability.

Features

  • Compliant with AMD SVI3 Rev 2.0
  • Compliant with PMBus Rev 1.3
  • Digitally controlled phasing
  • Differential output voltage sense
  • Fast current balancing with CM control
  • Digitally programmable PID
  • Digitally programmable loadline slope
  • Digital temperature compensation
  • Direct input 12 V voltage, current sense
  • Extensive fault detection, protection
  • Internal NVM

Benefits

  • Exellent transient response
  • Reduced BOM
  • Configurable autonomous phase add/drop
  • PMBus for telemetry and regulation
  • Advanced control loop features
  • Advanced protection features
  • Digital current balancing

Applications
