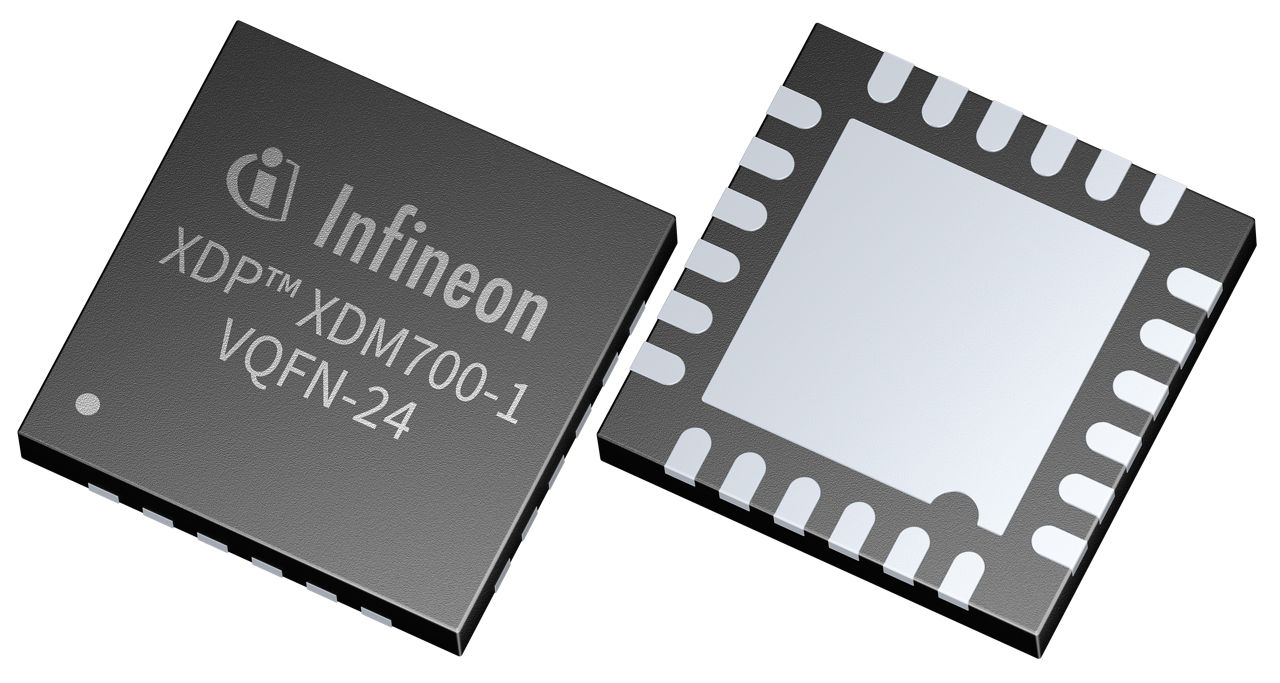

XDM700-1

NEW
Digital V/I/P/E/T monitoring IC with PMBus® interface and a wide input voltage range suitable for a broad range of applications
Data Sheet
package
board

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

XDM700-1
XDM700-1
Data Sheet

Product details

  • Analog reporting
    Power, Current
  • Communication Interfaces
    PMBus 1.3 at 1MHz
  • Current sensing
    Low-side, High-side
  • Energy reading register size
    40-bit
  • Input Voltage range
    5 V to 80 V
  • Package
    PG-VQFN-24
  • Power averaging ((32,768 samples))
    3 s
  • Product Group
    Monitoring IC
  • Protection Features
    PMBus communication warnings/alerts, Over temperature, Input overpower, Overcurrent, Output undervoltage, Input overvoltage, Input undervoltage, Output overvoltage
  • Supported rails
    Positive
  • Telemetry accuracy
    V ≤ 0.4%, I ≤ 0.75%, P ≤ 1.15%, E ≤ 2.7%
OPN
XDM7001XUMA1
Product Status coming soon
Infineon Package
PG-VQFN-24
Package Name N/A
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status coming soon
Infineon Package
PG-VQFN-24
Package Name -
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
XDM700-1 is a wide input voltage range monitoring IC that meets the reliability requirements of AI servers, telecom infrastructure & other applications where accurate monitoring is required. It allows for optimal sensitivity due to programmability of current & voltage sense ranges, monitors current, bus voltage, load voltage, bus power & energy, internal & external temperature & communicates in high-speed via PMBus®.

Features

  • Wide input voltage range: ±5 V to ±80 V
  • High or low-side current sensing
  • Voltage sensing: 0 V to 88 V
  • 12-bit ADC: V ≤ 0.4%, I ≤ 0.75% accuracy
  • 4-level programmable current sense range
  • Analog current and power monitor pin
  • Telemetry via PMBus® interface at 1MHz
  • Programmable ALERT: OOC, OV, UV, OUV, OP
  • Telemetry Peaks and Valleys reporting
  • Integrated 5 V regulator
  • Small package: VQFN-24 (4 mm x 4 mm)
  • 3-level programmable voltage sense range

Benefits

  • Optimized system performance
  • Improved system reliability
  • Usage in a wide range of applications
  • Small footprint & faster time-to-market
  • Compliance with industry standards
  • Easy-to-integrate in high-speed systems

Documents

Documents

Design resources

Partner solutions
