TZ810N22KOF TIM

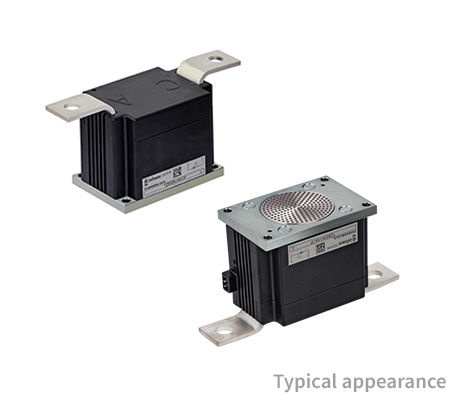

70 mm Single Thyristor Module with 2200 V in pressure contact technology
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TZ810N22KOF TIM
TZ810N22KOF TIM
Data Sheet

Product details

  • (diT/dt)cr [A/µs] (@DIN IEC 747- 6)
    200
  • Configuration
    Single SCR Phase Control
  • Features
    TIM
  • Housing
    70 mm
  • IFAVM/TC / ITAVM/TC [A/°C] (@180° el sin)
    819/85
  • IFSM / ITSM [A] (@10ms, Tvj max)
    35000
  • Product Line
    Power Block
  • rT [mΩ] (@Tvj max)
    0.17
  • RthJC [K/W] (@180° el sin)
    0.42
  • Tvj [°C]
    125
  • VDRM / VRRM [V]
    2200
  • VT0 [V] (@Tvj max)
    0.82
  • ∫I2dt [A²s · 103] (@10ms, Tvj max)
    6125
Recommended
OPN
TZ810N22KOFTIMHPSA1
Product Status active and preferred
Infineon Package BG-PB70AT-1
Package Name N/A
Packing Size 1
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package BG-PB70AT-1
Package Name -
Packing Size 1
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
Single Thyristor 70 mm Power Block 2200 V, 810 A module for phase control in pressure contact technology with pre-applied Thermal Interface Material . With TIM modules a reproducible thermal performance of power electronic systems will be achieved.

Features

  • Pressure contact technology
  • Industrial standard package
  • Electrically insulated base plate
  • Advanced Medium Power Technology
  • Short on fail
  • Highest robustness and reliability
