not for new design
RoHS Compliant
Lead-free

TT820N16KOF TIM

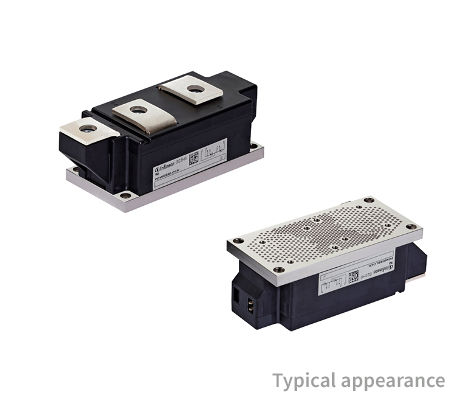

60 mm Thyristor/Thyristor Module with 1600 V in pressure contact technology
Data Sheet
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TT820N16KOF TIM
TT820N16KOF TIM
ea.
Data Sheet

Product details

  • (diT/dt)cr [A/µs] (@DIN IEC 747- 6)
    200
  • Configuration
    SCR / SCR Phase Control
  • Features
    TIM
  • Housing
    60 mm
  • IFAVM/TC / ITAVM/TC [A/°C] (@180° el sin)
    820/85
  • IFSM / ITSM [A] (@10ms, Tvj max)
    20100
  • Product Line
    Prime Block
  • rT [mΩ] (@Tvj max)
    0.23
  • RthJC [K/W] (@180° el sin)
    0.048
  • Tvj [°C]
    135
  • VDRM / VRRM [V]
    1600
  • VT0 [V] (@Tvj max)
    0.8
  • ∫I2dt [A²s · 103] (@10ms, Tvj max)
    2020
OPN
TT820N16KOFTIMHPSA1
Product Status not for new design
Infineon Package BG-PB60AT-1
Package Name N/A
Packing Size 2
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status not for new design
Infineon Package BG-PB60AT-1
Package Name -
Packing Size 2
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
Thyristor/Thyristor 60 mm Prime Block 1600 V, 820 A module for phase control in pressure contact technology with pre-applied Thermal Interface Material. TT820N16KOF offers highest current density and highest surge current in standard 60 mm housing.

Features

  • Pressure contact technology
  • Industrial standard package
  • Electrically insulated baseplate
  • Short on fail
  • Highest robustness

Applications

Motor control
