TT60N16SOFB01

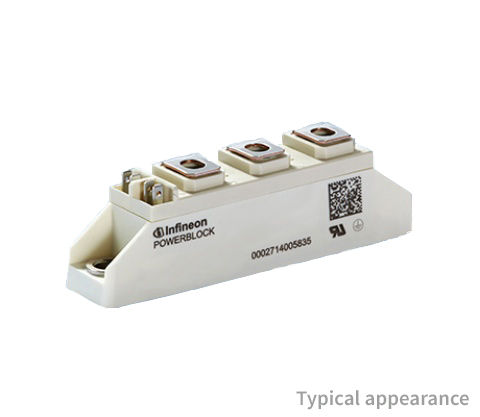

20 mm Thyristor/Thyristor Module with 1600 V in solder bond technology
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TT60N16SOFB01
TT60N16SOFB01
Data Sheet

Product details

  • (diT/dt)cr [A/µs] (@DIN IEC 747- 6)
    140
  • Configuration
    SCR / SCR Phase Control
  • Housing
    20 mm
  • IFAVM/TC / ITAVM/TC [A/°C] (@180° el sin)
    55/85
  • IFSM / ITSM [A] (@10ms, Tvj max)
    1200
  • Product Line
    Eco Block
  • rT [mΩ] (@Tvj max)
    4.8
  • RthJC [K/W] (@180° el sin)
    0.49
  • Tvj [°C]
    130
  • VDRM / VRRM [V]
    1600
  • VT0 [V] (@Tvj max)
    1
  • ∫I2dt [A²s · 103] (@10ms, Tvj max)
    7.2
Recommended
OPN
TT60N16SOFB01HPSA1
Product Status active and preferred
Infineon Package BG-SB20-1
Package Name N/A
Packing Size 12
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package BG-SB20-1
Package Name -
Packing Size 12
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
Thyristor/Thyristor 20 mm Eco Block 1600 V, 55 A module for Phase Control in solder bond technology . If you need additional features or higher performance please also find our Power Block Thyristor Modules for Phase Control with high reliable pressure contact technology : TT61N16KOF

Features

  • Industrial standard package
  • Electrically insulated base plate
  • Copper base plate
