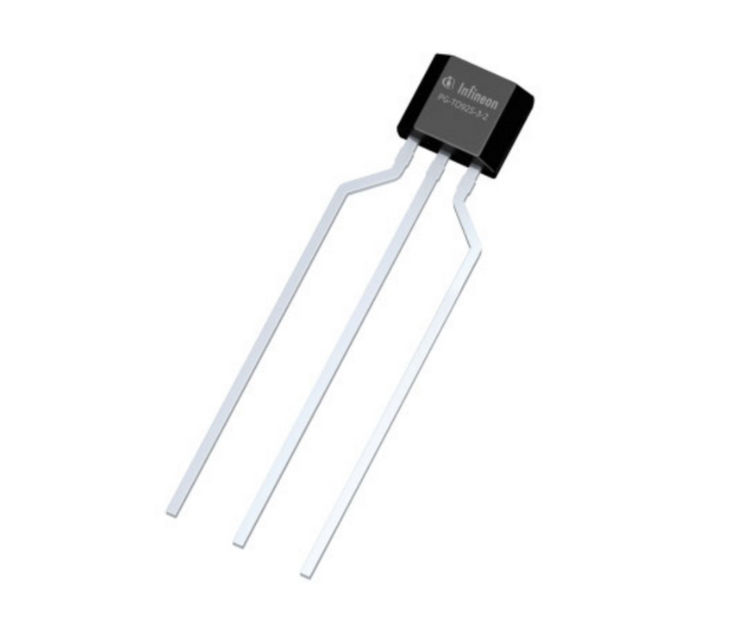

TLV4961-1TA

XENSIV™ - TLV4961-1TA magnetic Hall switch for index counting applications with a pole wheel
Data Sheet
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLV4961-1TA
TLV4961-1TA
ea.
Data Sheet

Product details

  • Bhyst
    4 mT
  • Bop
    2 mT
  • Brp
    -2 mT
  • Interfaces
    open collector
  • Language
    Magnetics
  • Planned to be available until at least
    2033
  • Product Category
    Sensors
  • Product Description
    Low cost Hall latch for consumer applications in a leaded package
  • Supply Voltage
    3 V to 26 V
  • Temperature
    -40 °C to 125 °C
  • Type
    Latch
Recommended
OPN
TLV49611TAXBXA1
Product Status active and preferred
Infineon Package PG-TO92S-3
Package Name N/A
Packing Size 4000
Packing Type BULK
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package PG-TO92S-3
Package Name -
Packing Size 4000
Packing Type BULK
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
TLV496x-xTA/B magnetic switches family: Ideal for contactless position sensing. Cost-effective solution for precise Hall switches/latches (unipolar/bipolar). Wide operating temperature range & excellent magnetic behavior. Suited for index counting, rotor position detection (in BLDC motors), open/closing detection.

Features

  • 3.0 V to 26 V operating supply voltage
  • Low current consumption 1.6 mA
  • ESD protection 4 kV HBM
  • Operating from unregulated power supply
  • Output overcurrent, overtemp protection
  • Active error compensation (chopping)
  • Operating temp R from -40 °C to 125 °C
  • High ESD performance
  • JESD47 qualified

Applications
