TLS208D1EJV

The TLS208D1EJV is a monolithic integrated linear voltage post regulator.
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLS208D1EJV
TLS208D1EJV
ea.
Data Sheet

Product details

  • Accuracy
    2 %
  • Base Product
    TLS208D1xxVxx
  • Budgetary Price €/1k
    0.9
  • Dropout Voltage
    900 mV
  • Early Warning
    no
  • Enable (=Inhibit)
    yes
  • Family
    OPTIREG™ linear Post Regulator
  • Hold
    no
  • Operating Temperature
    -40 °C to 150 °C
  • Operating Voltage
    2.7 V to 18 V
  • Output Current max
    800 mA
  • Output Voltage Type
    adj.
  • Over Voltage Protection
    no
  • Currently planned availability until at least
    2037
  • Power Fail
    no
  • Power Good
    no
  • Qualification
    Automotive
  • Quiescent Current
    90 µA
  • Regulator Type
    Post Regulator
  • Reset
    yes
  • Status Output
    no
  • Watchdog
    no
Recommended
OPN
TLS208D1EJVXUMA1
Product Status active and preferred
Infineon Package
PG-DSO-8
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-DSO-8
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The TLS208D1EJV is designed for applications with a permanent connection to pre-regulators. Available in PG-DSO-8 (Exposed Pad) and TSON-10 packages. Features include enable functionality and adjustable reset threshold. Protected against overload, short circuit, and over-temperature. Input capacitor CI compensates line influences. Output capacitor CQ ensures stability of the regulating circuit. Ideal for automotive applications.

Features

  • Adjustable Output V from 0.8 V to 5.25 V
  • Output Voltage Accuracy of ± 2 %
  • Static Output Currents up to 800 mA
  • Enable Functionality
  • Undervoltage with Power-On Reset Delay
  • Adjustable Reset Threshold
  • Low Dropout Voltage: typ. 400mV at 400mA
  • Very Low Current Consumption: typ. 90 μA
  • Very High PSRR: typ. 62dB at 10kHz
  • Output Current Limitation
  • Overtemperature Shutdown

Benefits

  • Less system cost
  • Very high power supply ripple rejection
  • Suitable for cranking → 2.7V input
  • Power saving with enable feature

Diagrams

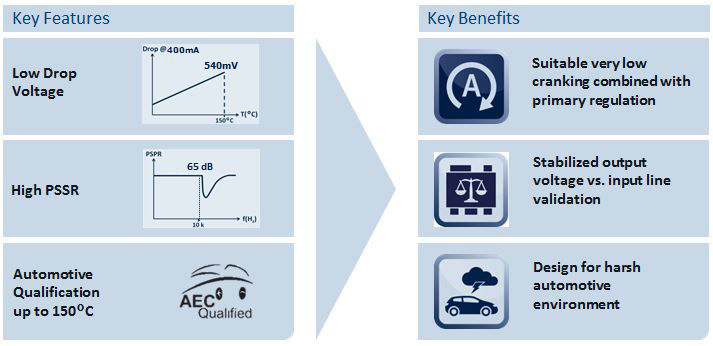

KeyFeatures_TLS208
KeyFeatures_TLS208
KeyFeatures_TLS208 KeyFeatures_TLS208 KeyFeatures_TLS208
KeyFeatures_TLS208 KeyFeatures_TLS208 KeyFeatures_TLS208

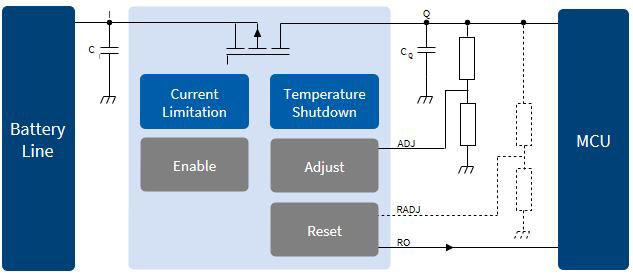

Block_Diagram_TLS208D1EJV Block_Diagram_TLS208D1EJV Block_Diagram_TLS208D1EJV
Block_Diagram_TLS208D1EJV Block_Diagram_TLS208D1EJV Block_Diagram_TLS208D1EJV
×
