TLI5572-AE04E1-E0001
NEW
Active and preferred
RoHS Compliant
Lead-free

TLI5572-AE04E1-E0001

NEW

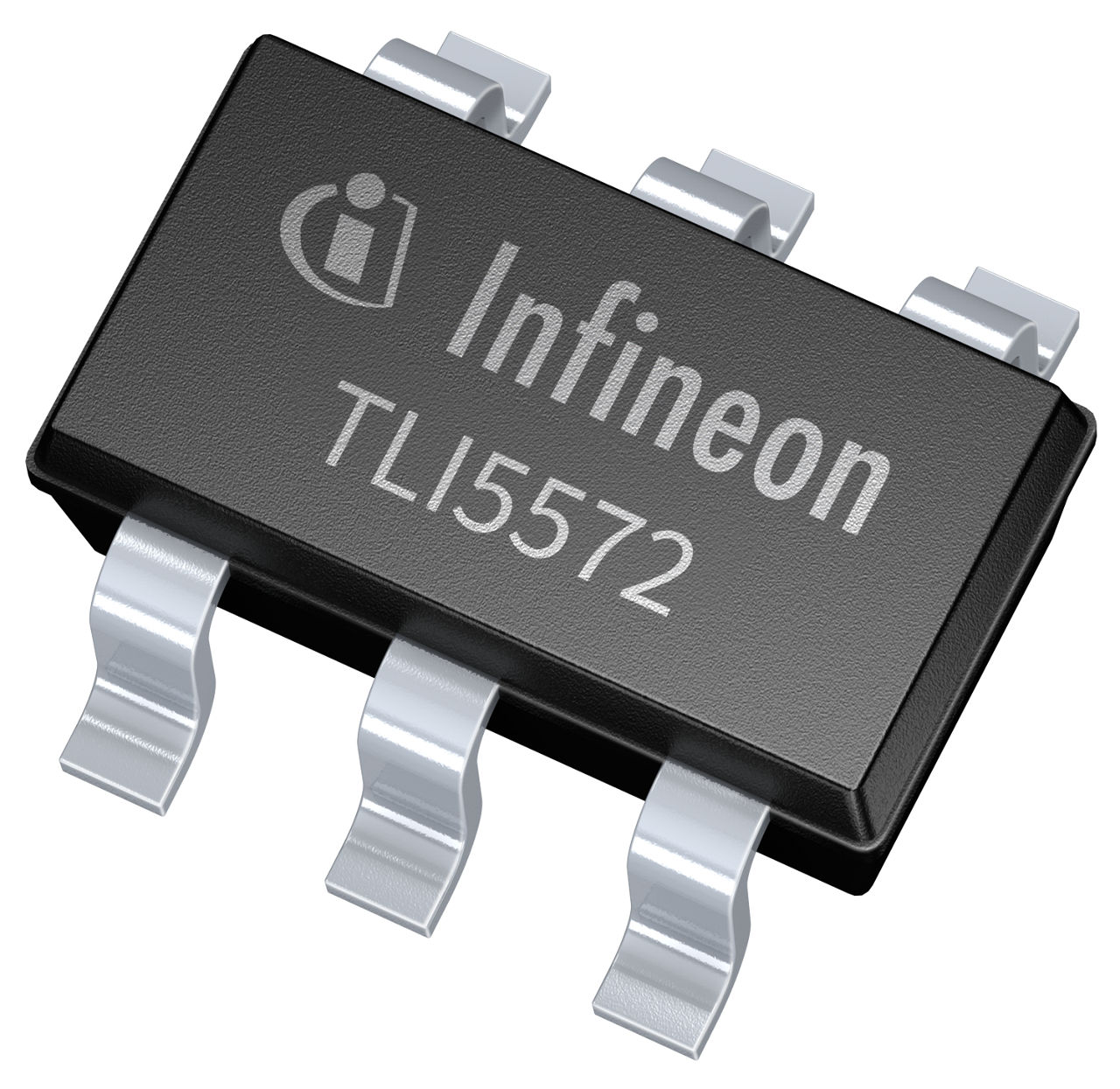

Compact and cost-effective XENSIV™ TLI5572 TMR current sensor for high-power applications, high bandwidth and low noise, range ±4mT (3.3V)/±6mT (5V)
Data Sheet
package
board

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLI5572-AE04E1-E0001
TLI5572-AE04E1-E0001
Data Sheet

Product details

  • Accuracy
    3 %
  • Current rail
    external (eCR)
  • Green
    RoHS compliant, Halogen free
  • Interfaces
    Analog
  • Supply Voltage
    3.3 - 5 V
Recommended
OPN
TLI5572AE04E1E0001XTSA1
Product Status active and preferred
Infineon Package
PG-SOT23-6
Package Name N/A
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-SOT23-6
Package Name -
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The XENSIV™ TLI5572 current sensor in a compact SOT23 package is a contactless magnetic field sensor designed for high-power applications like drones and power tools, measuring currents up to several hundred amps. Offering superior cost-performance compared to shunt-based solutions, it delivers 3% accuracy over temperature after end-of-line calibration.

Features

  • Field range @3.3 V [mT] ±4
  • Field range @5 V [mT] ±6
  • Fully isolated measurement of current
  • 3.3 V and 5 V supply voltage
  • Ultra-low noise analog output
  • Small form factor (SOT23 pkg)
  • No parasitic resistance or inductance
  • Fast response time (140 ns)
  • High bandwidth (>1MHz)
  • High accuracy (3% over temperature)

Benefits

  • Better system cost compared to Shunt + OpAmp
  • Enables compact design
  • Low system heat loss
  • Suited for GaN & SiC applications
  • Isolated current measurement
  • System level space & cost saving
  • Highly robust system design
  • Great in extreme operating conditions
