TLF4D985QVV02R1

NEW

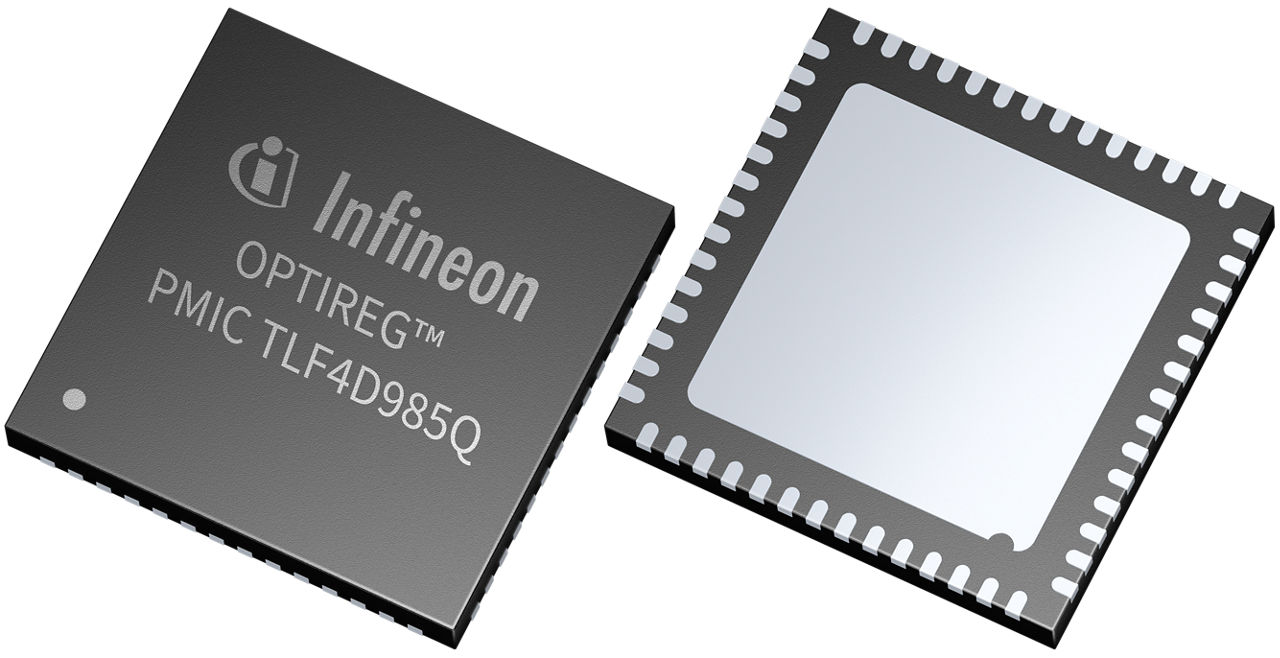

TLF4D985QVV02R1 is a functional safety PMIC for automotive applications, powering AURIX™ MCUs and sensors with efficient voltage regulation.
Data Sheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLF4D985QVV02R1
TLF4D985QVV02R1
Data Sheet

Product details

  • Base Product
    TLF4D985Qx
  • Classification
    ISO 26262-compliant
  • Comments
    Buck PostReg for highspeed interface supply, Automotive Safety PMIC, companion power IC for Aurix™ MCU and peripherals, Buck PreReg, Safety Features, Grade 0, StandBy-LDO, Buck PostReg for core supply, Boost PostReg, 3 linear PostRegs (µC, RefLDO, TRX), ISO 26262-compliant
  • Compatible Microcontrollers
    AURIX™ TC3x, TC4x, TRAVEO™ T1G
  • Enable (=Inhibit)
    Yes
  • Family
    OPTIREG™ PMIC
  • Iout max
    30 mA, 150 mA, 600 mA, 1000 mA, 1200 mA, 7000 mA, 10000 mA
  • Iq
    70 µA
  • ISO 26262
    ASIL-D
  • Operating Temperature range
    -40 °C to 175 °C
  • Operating Voltage range
    3 V to 52 V
  • Over Voltage Protection
    Yes
  • Package
    PG-VQFN-56
  • Product Group
    PMIC
  • Qualification
    Automotive
  • Regulator Type
    Post-Buck, Post-LDO, Post-Boost, Pre-Buck
  • Reset
    Yes
  • Target Application
    Safe Control, Safe Computing
  • Tolerance
    2%
  • VQ (multiple)
    1.0V, 3.3V, 5.8V, 4.0V or 5.5V, 1.8V, 5.0V
  • Watchdog
    Functional-WD, Window-WD
Recommended
OPN
TLF4D985QVV02R1XUMA1
Product Status active and preferred
Infineon Package
PG-VQFN-56
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-VQFN-56
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
The TLF4D985QVV02R1 is a high-efficiency PMIC for automotive applications, supporting ASIL D systems per ISO 26262. It features a 3V–40V buck-boost pre-regulator for stable operation during cranking and a precision ADC reference for accuracy. With independent sensor trackers, a low-power state machine, and robust watchdog monitoring, it is the ideal AEC-Q100 qualified supply for Infineon AURIX™ TC2x and TC3x microcontrollers.

Features

  • Digital power interoperability
  • AURIX™ portfolio scalability
  • Dedicated compute & control features
  • ASIL D compliant safety
  • System integrity support
  • AURIX™ Freedom from Interference

Benefits

  • Ease of use
  • Centralized power management
  • Safe MCU supervision
  • Hardware & Software reuse
  • Lower R&D effort with scalability
  • Optimized Bill of Material
  • Unique fit to AURIX ™ TC4x family
  • Multi-CPU support
  • Multi-threading systems
  • Independent safe state handling
