TLE9461-3ES

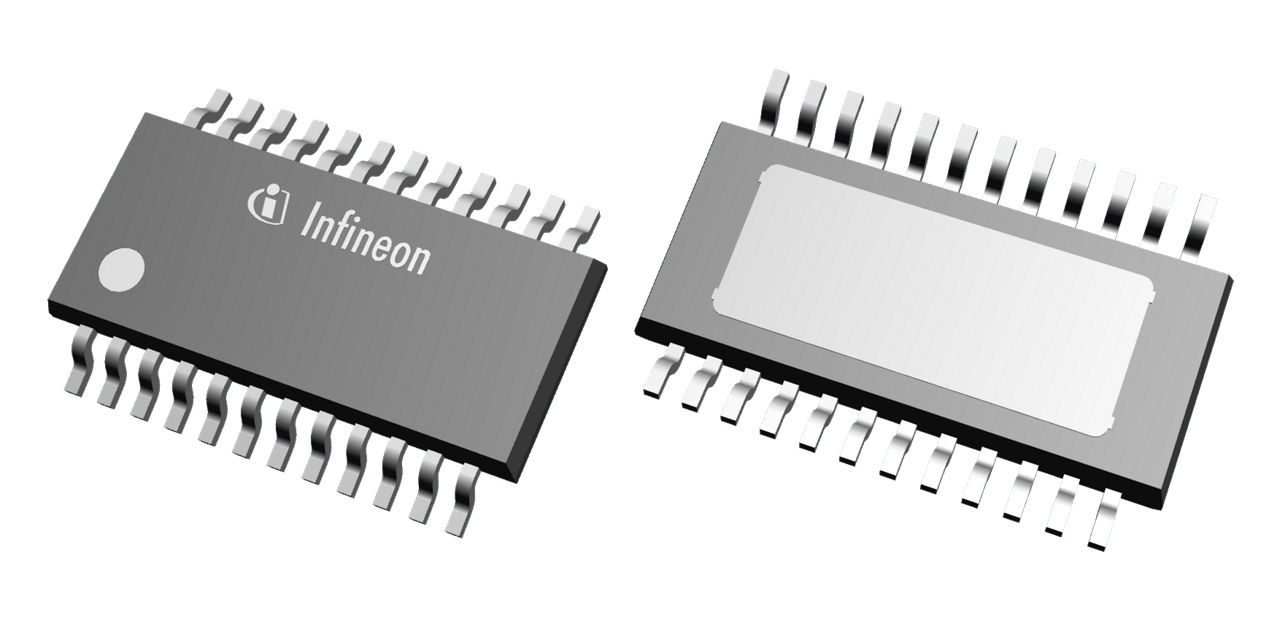

The TLE9461-3ES is a monolithically integrated circuit in an exposed pad PG-TSDSO-24-1 (150 mil) power package
Data Sheet
package
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE9461-3ES
TLE9461-3ES
ea.
Data Sheet

Product details

  • Family
    OPTIREG™ Lite SBC
  • Output Drivers
    1 x Charge Pump
  • Currently planned availability until at least
    2038
  • Quiescent Current
    15µA (typ.) Sleep Mode
  • Standby Current
    44µA (typ.) Stop Mode
  • Transceiver
    1 x CAN FD ISO 11898 - 2
  • Transmission Rate max
    5 MBit/s
  • Voltage Regulator Output ((VCC1))
    5V / 150 mA
  • Voltage Regulator Output ((VCC2))
    5V / 100 mA
  • Wake-up Inputs
    Wake Pins, CAN
Recommended
OPN
TLE94613ESXUMA1
Product Status active and preferred
Infineon Package
PG-TSDSO-24
Package Name N/A
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 2a
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-TSDSO-24
Package Name -
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 2a
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
CAN SBC for automotive applications. 5V LDO for microcontroller, off-board sensor supply, HS-CAN transceiver (CAN FD, Partial Networking), high-voltage GPIO, 16-bit SPI. Configurable watchdog, Fail Output, undervoltage reset. Low-power modes. Wake-up via message, monitoring input, cyclic wake.

Features

  • Current consumption in Stop & Sleep Mode
  • Wake in SBC Normal-, Stop- & Sleep Mode
  • Sense in SBC Normal-, Stop- & Sleep Mode
  • Low-Drop Linear Voltage Regulator 5 V
  • Protected features for off-board usage
  • High-Speed CAN transceiver
  • Charge pump-Output for N-channel MOSFET
  • Universal High-Voltage Wake Input
  • GPIO configurable as Fail Output
  • HIgh-Voltage Measurement Function
  • Fail Outputs for Fail-Safe signalization
