TLE94110ES

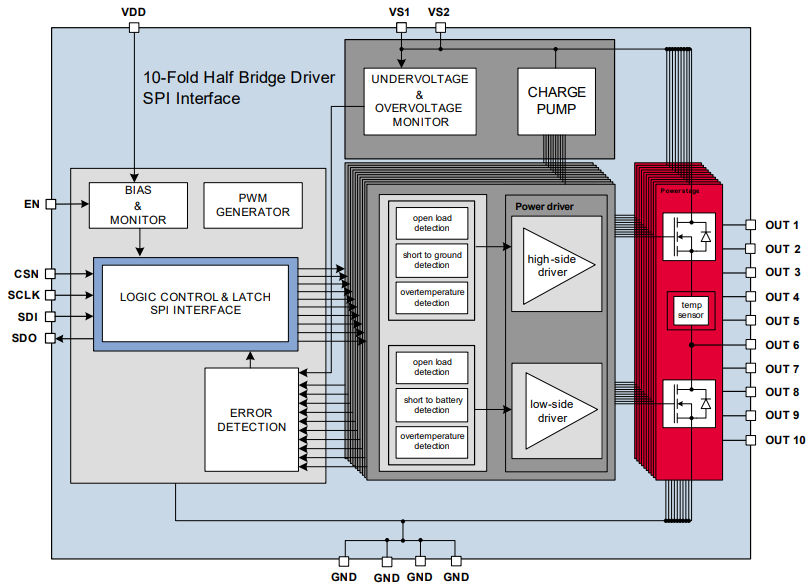

The MOTIX™ TLE94110ES is a protected ten-fold half-bridge driver designed especially for automotive motion control applications
Data Sheet
package
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE94110ES
TLE94110ES
ea.
Data Sheet

Product details

  • Over current detection min
    0.9 A
  • Planned to be available until at least
    2037
  • Qualification
    Automotive
  • RDSON_H(typ)
    850 mΩ
  • RDSON_L(typ)
    850 mΩ
  • Supply Voltage absolute max ratings
    40 V
Recommended
OPN
TLE94110ESXUMA1
Product Status active and preferred
Infineon Package
PG-TSDSO-24
Package Name N/A
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 2a
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-TSDSO-24
Package Name -
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 2a
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
Our family offers half-bridge drivers with 3 to 12 outputs and direct/SPI interfaces. Designed for sequential and parallel operation of DC motor loads, they support forward/reverse/brake/high impedance modes via a 16-bit SPI interface. With diagnosis features and low quiescent current, it's perfect for automotive applications. The compact PG-TSDSO-14 package ensures thermal efficiency and cost reduction.

Features

  • Ten half-bridge power outputs
  • Low 0.2 µA quiescent current
  • 3.3V/5V input with hysteresis
  • 16-bit SPI for control & diagnosis
  • Overload & short circuit protection
  • Independent output diagnosis
  • Open load ON-state diagnostics
  • Fast global error flag
  • Overtemperature protection
  • Over/Undervoltage lockout
  • Cross-current protection
  • PWM capable outputs for frequencies 80Hz

Benefits

  • No external MOSFETs needed
  • Low power consumption in sleep mode
  • Reduce system cost, small PCB footprint
  • Driving schemes for up to 11 motors
  • Advance diagnosis features
  • OUT 1 & 2 optimized for driving HS loads
  • Fast diagnosis with global error flag
