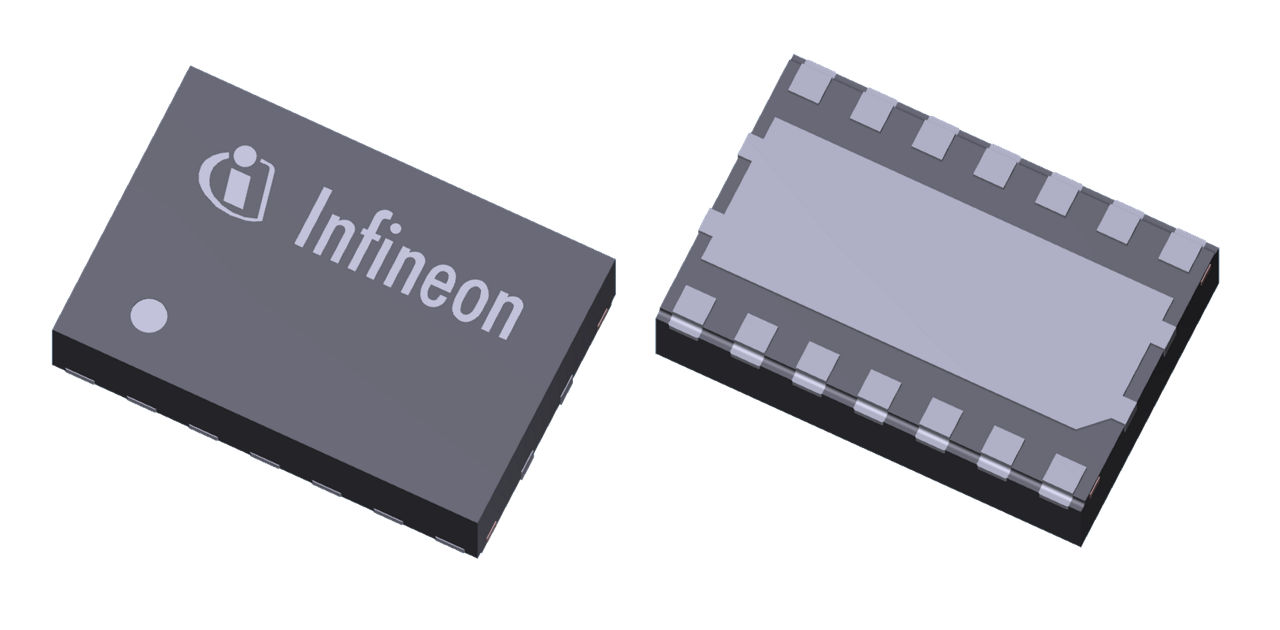

TLE9255WLC

The TLE9255WLC is part of the Infineon CAN transceiver family being compliant to the new ISO11898-2 from 2016 and also to the former ISO11898-6
Data Sheet
package
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE9255WLC
TLE9255WLC
ea.
Data Sheet

Product details

  • Additional Features
    Partial Networking, WK, SPI, INH, Vio
  • Base Product
    TLE9255
  • Bus Wake-Up Capability
    Yes
  • Family
    CAN Transceiver
  • Features
    Receive Only Mode,INH,Partial Networking,SPI,Vio,WK, Tiny Package
  • Language
    IBIS
  • Planned to be available until at least
    2039
  • Product Category
    Transceivers
  • Qualification
    Automotive
  • Quiescent Current
    < 20 µA in sleep mode
  • Standards
    ISO11898-6
  • Supply Voltage
    3.3 V, 5 V
  • Transmission Rate max
    5 MBit/s
  • Type
    CAN PN, CAN FD, CAN
  • Wake-up Inputs
    Bus Wake-up, Wake-up Pin
Recommended
OPN
TLE9255WLCXUMA1
Product Status active and preferred
Infineon Package
PG-TSON-14
Package Name N/A
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 2a
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-TSON-14
Package Name -
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 2a
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The TLE9255WLC, a tiny TSON-14 package, supports reliable automated optical inspection (AOI). It is CAN FD compliant, supporting transmission and reception of CAN FD messages up to 2Mbit/s. The transceiver also offers CAN FD payload blocking. Additionally, the SPI interface enables flexible configuration of wake-up functions, INH output control, mode control, and undervoltage control for various automotive applications.

Features

  • Fully compliantto ISO11898-2 (2016)
  • CAN PN and CAN FD @ 2 MBit/s
  • Wide EMI immunity common mode
  • Very low electromagnetic emission (EME)
  • Excellent ESD: ±8 kV IEC61000-4-2
  • Independent VCC and VBAT supply
  • Overtemperature protection
  • CAN FD wake-up frame detection
  • Local wake-up input
  • SPI clock frequency up to 4 MHz
  • Green Product (RoHS compliant)
