TLE9243QK

The TLE9243QK is an application specific multiple output system supply for transmission applications supplying 5 V-μC, transceivers, and sensors by an efficient and flexible pre-/post-regulator concept over a wide input voltage range.
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE9243QK
TLE9243QK

Product details

  • Base Product
    TLE9243QK
  • Classification
    ISO 26262-compliant
  • Comments
    Companion power IC for Aurix™ MCU and peripherals, Buck/Boost PreReg, 3 linear PostRegs (µC, COM, REF), 2 trackers, 3 battery supplied linear regulators and sensor interface channels, ISO 26262-compliant, 2 High-side gate drivers, Automotive Transmission PMIC, Grade 0, Safety Features
  • Compatible Microcontrollers
    TRAVEO T1G
  • Enable (=Inhibit)
    yes
  • Iout
    1500 mA, 800 mA, 240 mA, 150 mA, 150 mA, 150 mA, 50 mA, 50 mA, 50 mA
  • Iq
    25 µA
  • ISO 26262
    ASIL-D
  • Operating Temperature
    -40 °C to 175 °C
  • Operating Voltage
    3 V to 40 V
  • Over Voltage Protection
    yes
  • Package
    PG-LQFP-64
  • Planned to be available until at least
    2039
  • Product Group
    PMIC
  • Qualification
    Automotive
  • Regulator Type
    Buck-boost
  • Reset
    yes
  • Target Application
    Safe Control
  • Tolerance
    2 %, 2 %, 2.6 %, 1 %, 0.2 %, 0.2 %, 3.3 %, 3.3 %, 3.3 %
  • VQ (multiple)
    9.0 V, 9.0 V, 9.0 V, 5.0 V, 5.0 V, 5.8 V, 5.0 V, 5.0 V, 5.0 V
  • Watchdog
    Functional-WD, Window-WD
Recommended
OPN
TLE9243QKXUMA1
Product Status active and preferred
Infineon Package
PG-LQFP-64
Package Name N/A
Packing Size 1900
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-LQFP-64
Package Name -
Packing Size 1900
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
TLE9243QK: Application-specific PMIC for power management and transmission systems. Sensor interfaces, 9V LDO per channel, external power switch drivers. Developed according to ISO26262 up to ASIL-D. Window and functional watchdogs for ASIL-D compliance. Grade 0 thermally enhanced LQFP-64 package. Contact sales representative for datasheet and support.

Features

  • Transmission Functions high side drivers
  • Three 9.0V LDOs ±3%;50mA
  • 3Current-Based Speed Sensor Channels
  • Boost and buck/LDOs and trackers forμC
  • Transceivers
  • Sensors
  • Flexible watchdogs
  • Error-monitoring
  • Safe state controller
  • Support of Active Reverse Polarity Prot

Benefits

  • Reduced external components cut costs.
  • Optimized system FuSa
  • Enables ASIL-D on system level
  • ISO 26262: Complete Documentation Set
  • Interoperable with AURIX™
  • Interoperable with XENSIV™
  • Interoperable with Drivers

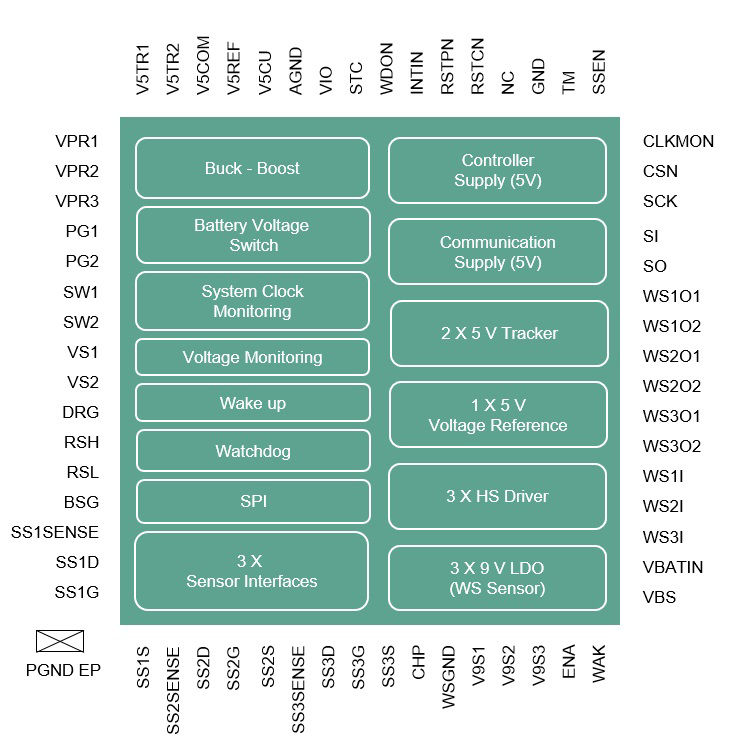

Diagrams
