TLE9180D-21QK

MOTIX™ TLE9180D-21QK gate driver IC for BLDC motors provides an advanced safety feature set for high-current motor drives up to 48 V
Data Sheet
package
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE9180D-21QK
TLE9180D-21QK
ea.
Data Sheet

Product details

  • Certifications
    Q100
  • Classification
    ISO 26262-ready
  • Configuration
    3-phase
  • Control Interface
    PWM, 16-bits SPI
  • Current Sense Amplifier
    2x CSA
  • Diagnostics
    UV, OV, SCD, OT, VDHP , VCC, CP
  • Driving Capability
    300nC at 20kHz
  • Fall Time
    80 ns
  • Family
    MOTIX™ gate driver ICs for BLDC motors
  • Marketing Priority
    69
  • Output Vbs
    6.3 V to 12 V
  • Package
    PG-LQFP-64
  • Planned to be available until at least
    2038
  • Qualification
    Automotive
  • Rise Time
    90 ns
  • Supply Voltage
    5.5 V to 60 V
  • Switch Type
    MOSFET
  • Temperature
    - 40°C - 150°C
Recommended
OPN
TLE9180D21QKXUMA1
Product Status active and preferred
Infineon Package
PG-LQFP-64
Package Name N/A
Packing Size 1900
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-LQFP-64
Package Name -
Packing Size 1900
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The MOTIX™ TLE9180D-21QK is an advanced gate driver IC for controlling 6 N-channel MOSFETs in automotive 3-phase motor drives. It operates at 12 V, 24 V, and 48 V and has a powerful driver stage with 2A output current per channel. It includes integrated current sense amplifiers for shunt signal conditioning. ISO26262-compliant enhancement is available on request.

Features

  • Supply voltage range from 5.5 V – 60 V
  • Powerful driver stage with typ. 2A
  • Full duty cycle range without limits
  • Two integrated current sense amplifier
  • Extended protection and supervision
  • LQFP-64 exposed pad package

Benefits

  • Universal voltage support: 12V, 24V, 48V
  • Integrated load current measurement
  • Limp home mode
  • Detailed diagnosis for safety applications

Diagrams

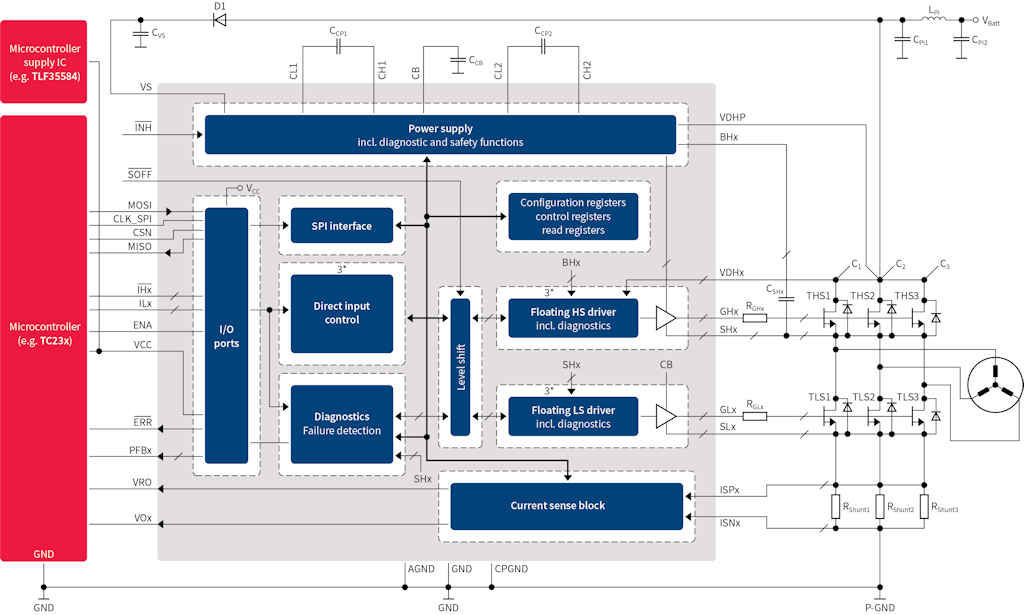

TLE9180D_Block-diagram
TLE9180D_Block-diagram
TLE9180D_Block-diagram TLE9180D_Block-diagram TLE9180D_Block-diagram
TLE9180D_Block-diagram TLE9180D_Block-diagram TLE9180D_Block-diagram
×
