TLE8457BSJ

END OF LIFE
The TLE8457BSJ is a monolithic integrated LIN transceiver with low drop-out voltage regulator in the TSON-8 package.
Data Sheet
package
View replacement

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE8457BSJ
TLE8457BSJ
View replacement
Data Sheet

Product details

  • Additional Features
    3.3 V output VREG, EN, RESET
  • Bus Wake-Up Capability
    Yes
  • Features
    Integrated voltage regulator, EN
  • Output Current
    70 mA
  • Package

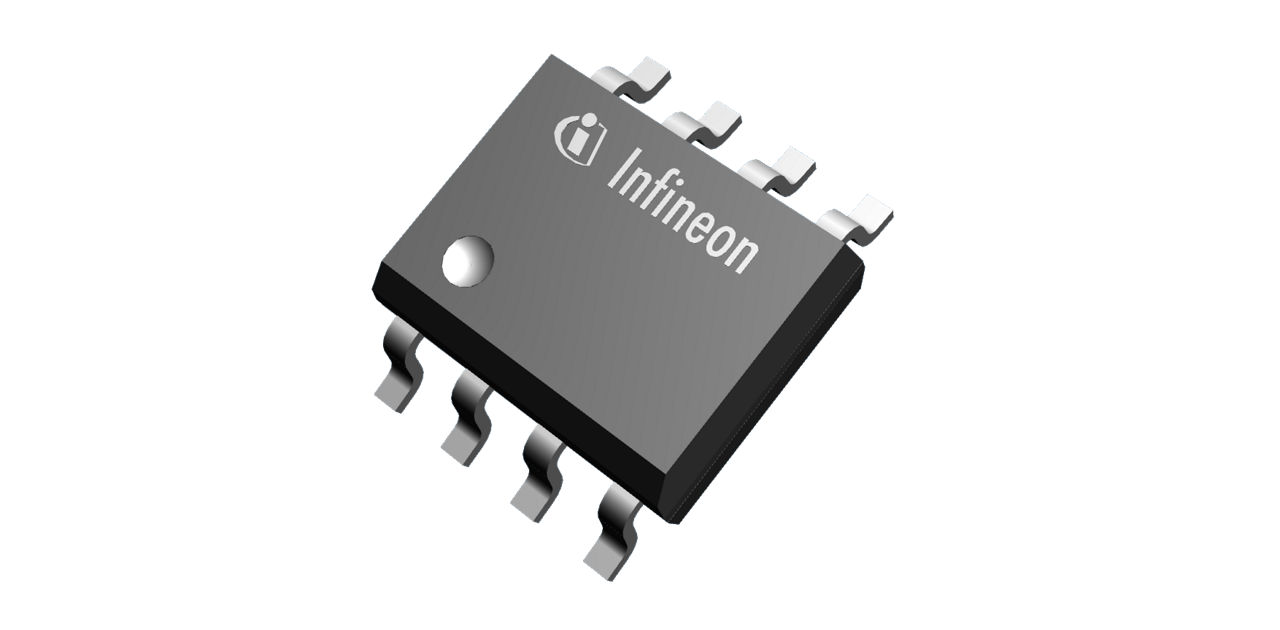

    PG-DSO-8
  • Planned to be available until at least
    n.a
  • Qualification
    Automotive
  • Quiescent Current
    < 10 µA sleep mode
  • Standards
    LIN 1.2, 1.3, 2.x, 2.2A, SAEJ2602, ISO 17987-4
  • Supply Voltage
    3.3 V
  • Transmission Rate max
    20 kBit/s
  • Type
    LIN
  • Wake-up Inputs
    Bus wake-up
OPN
TLE8457BSJXUMA1
Product Status discontinued
Infineon Package
PG-DSO-8
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
View replacement

Product Status discontinued
Infineon Package
PG-DSO-8
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
View replacement
The TLE8457BSJ supplies a stable 3.3 V to microcontrollers and peripherals, with up to 70 mA. It offers VCC undervoltage reset protection, complies with LIN specification 2.2A and SAE J2602 for bi-directional bus communication, and transitions to power saving mode upon fault detection. AEC qualified and based on Infineon BiCMOS technology, it provides excellent ESD robustness and high EMC.

Benefits

  • 3.3 V low drop-out linear voltage regulator with 70 mA current capability
  • stable output voltage with small ceramic output capacitor ( 1 µF )
  • integrated initialization time-out feature
  • low current consumption in stand-by mode (40 μA) and sleep mode (16μA)
  • includes the TxD dominant time-out feature
  • excellent EMC performance (IBEE test report)
  • DSO-8 package
  • TLE8457BSJ LIN-LDO demo board available

Applications
