Active and preferred
RoHS Compliant
Lead-free

TLE8457DSJ

Data Sheet
package
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE8457DSJ
TLE8457DSJ
ea.
Data Sheet

Product details

  • Additional Features
    3.3 V output VREG, EN, RESET
  • Bus Wake-Up Capability
    Yes
  • Family
    LIN Transceiver
  • Features
    Integrated voltage regulator, EN
  • Output Current
    70 mA
  • Planned to be available until at least
    2038
  • Qualification
    Automotive
  • Quiescent Current
    < 10 µA sleep mode
  • Standards
    LIN 1.2, 1.3, 2.x, 2.2A, SAEJ2602, ISO 17987-4
  • Supply Voltage
    3.3 V
  • Transmission Rate max
    20 kBit/s
  • Type
    LIN
  • Wake-up Inputs
    Bus wake-up
Recommended
OPN
TLE8457DSJXUMA1
Product Status active and preferred
Infineon Package
PG-DSO-8
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-DSO-8
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The TLE8457DSJ is a LIN transceiver with low drop-out voltage regulator in a compact TSON-8 package. It supplies a stable 3.3V, up to 70mA, to microcontrollers and peripherals. Features include VCC undervoltage reset, LIN 2.2A, SAE J2602 compliance. Ultra low standby current of 20μA. Robust ESD protection, high EMC performance. AEC qualified for automotive use. See family overview table for variants.

Benefits

  • 5 V low drop-out linear voltage regulator with 70 mA current capability
  • stable output voltage with small ceramic output capacitor ( 1 µF )
  • integrated initialization time-out feature
  • low current consumption in stand-by mode (40 μA) and sleep mode (16μA)
  • includes the TxD dominant time-out feature
  • excellent EMC performance (IBEE test report)
  • DSO-8 package
  • TLE8457DSJ LIN-LDO demo board available

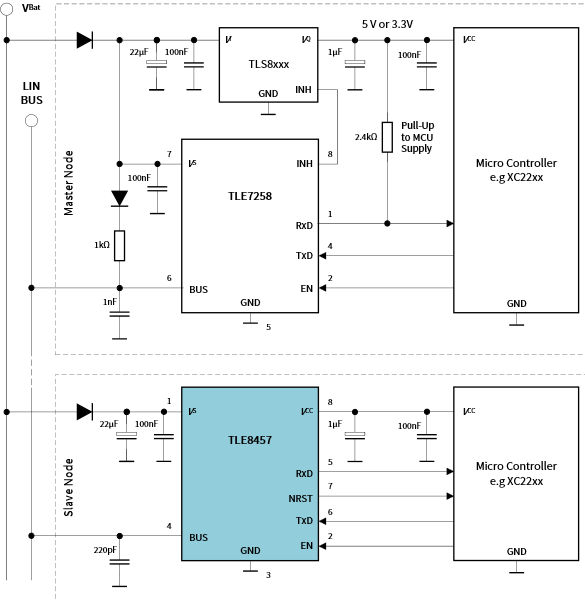

Diagrams

TLE8457DSJ
TLE8457DSJ
TLE8457DSJ TLE8457DSJ TLE8457DSJ
×
