TLE7240SL

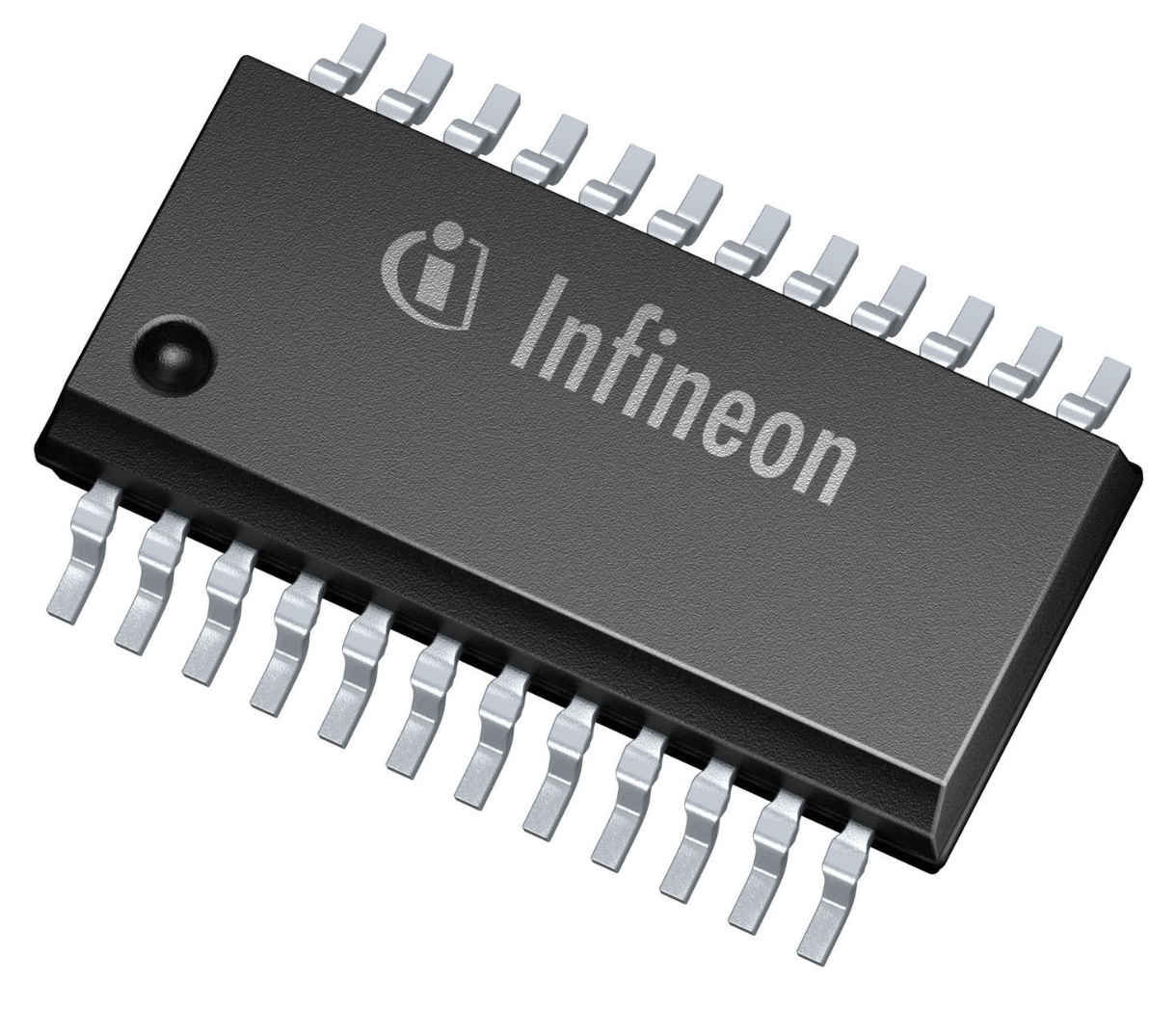

The SPIDER - TLE 7240SL is a eight channel low-side switch in PG-SSOP-24-7 package providing embedded protective functions
Data Sheet
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE7240SL
TLE7240SL
ea.
Data Sheet

Product details

  • Channels
    8
  • Configurable Channels
    N/A
  • Cranking mode
    No
  • Daisy-Chain Capability
    Yes
  • Family
    SPIDER
  • ID (multiple)
    210.0 mA
  • ID(lim) min
    0.5 A
  • Limp Home Feature
    Yes
  • Mounting
    SMT
  • Open Load Detection
    off
  • Open Load Disable Function
    Yes
  • Operating Temperature
    -40 °C to 150 °C
  • Over Current Protection
    Shutdown
  • Overload shutdown
    Yes
  • PWM Inputs
    4
  • Quiescent Current max
    10 µA
  • RDS (on)
    1.5 Ω
  • Short GND Detection
    Yes
  • SPI
    16 Bit
  • Standby Mode
    Yes
  • Undervoltage Shutdown
    Yes
  • VDD
    3.0 - 5.5 V
  • VDS(CL)
    41 V to 52 V
OPN
TLE7240SLXUMA4
Product Status not for new design

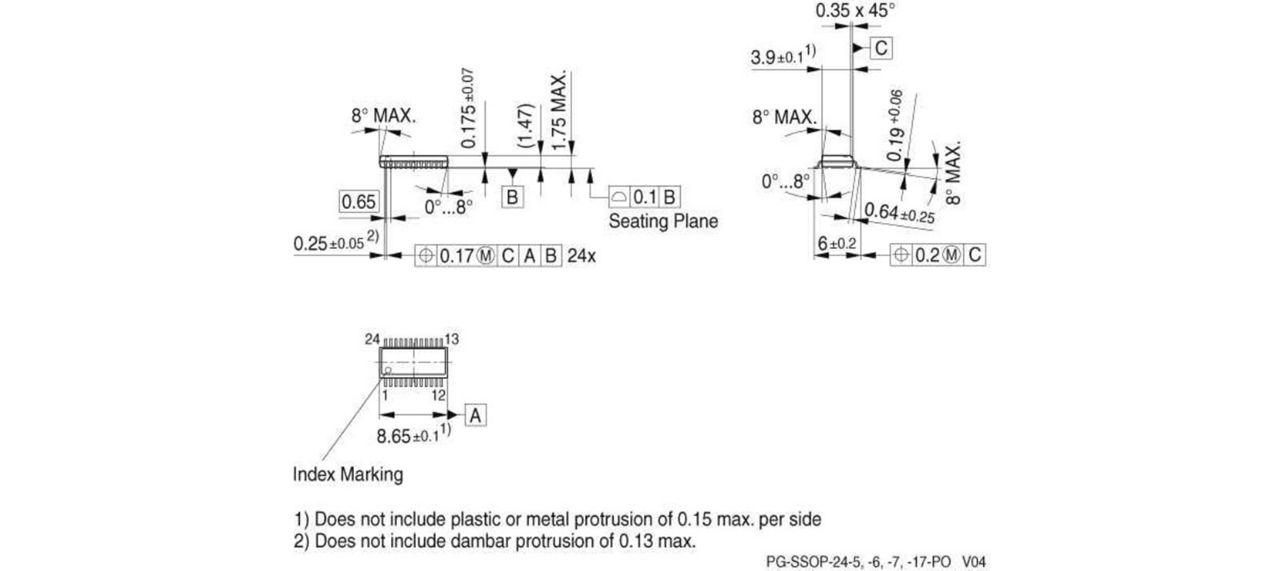

Infineon Package PG-SSOP-24
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status not for new design
Infineon Package PG-SSOP-24
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
It is especially designed as relay driver in automotive applications. A serial peripheral interface (SPI) is utilized for control and diagnosis of the device and the load. For direct control and PWM there are four input pins available. The device is monolithically integrated. The power transistors are built by N-channel MOSFETs. The successor product of the TLE7240SL is the TLE75008-ESD. The TLE75008-ESD comprises additional features like enhanced load capability due to improved thermal performance using an exposed pad and cranking down to 3V battery. Furthermore, the TLE75008-ESD (TSDSO-24 package) is accompanied by the pin compatible 4-channel low-side switch TLE75004-ESD (TSDSO-14 package) enabling system cost optimization.

Features

  • 4 input pins providing flexible PWM configuration
  • Limp home functionality (direct driving) provided by a dedicated pin
  • 16 bit SPI for diagnostics and control
  • Daisy chain capability also compatible with 8bit SPI devices
  • Very wide range of digital supply voltage
  • Green Product (RoHS compliant)
  • AEC Qualified

Benefits

  • Less Microcontr.  I/Os needed
  • Protection of load and device
  • Reduced PCB space
  • Improved reliability
  • Less external components
  • Cost savings

Applications
