TLE6240GP

END OF LIFE
16-fold Low-Side Switch in Smart Power Technology (SPT) with a Serial Peripheral Interface (SPI) and 16 open drain DMOS output stages
Data Sheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE6240GP
TLE6240GP
Data Sheet

Product details

  • Channels
    16
  • Comments
    inductive and resistive loads (e.g. injectors)
  • High Side / Low Side
    0/16
  • ID(lim)(multiple)
    8 x 1.0 ; 8 x 3.0 A
  • Operating Temperature
    -40 °C to 150 °C
  • Over Current Protection
    Limitation
  • Pin Count
    36 Pins
  • Currently planned availability until at least
    n.a
  • RDS (on) (multiple)
    8 X 1.7; 4 X 0.6; 4 X 0.5 Ohm (typ @ 150°C)
  • Thermal Class
    Heatslug down
  • toff max
    12 µs
  • ton max
    12 µs
  • VDD
    5.0 V
  • VDS(CL)
    45 V to 60 V
OPN
TLE6240GPAUMA1
Product Status discontinued

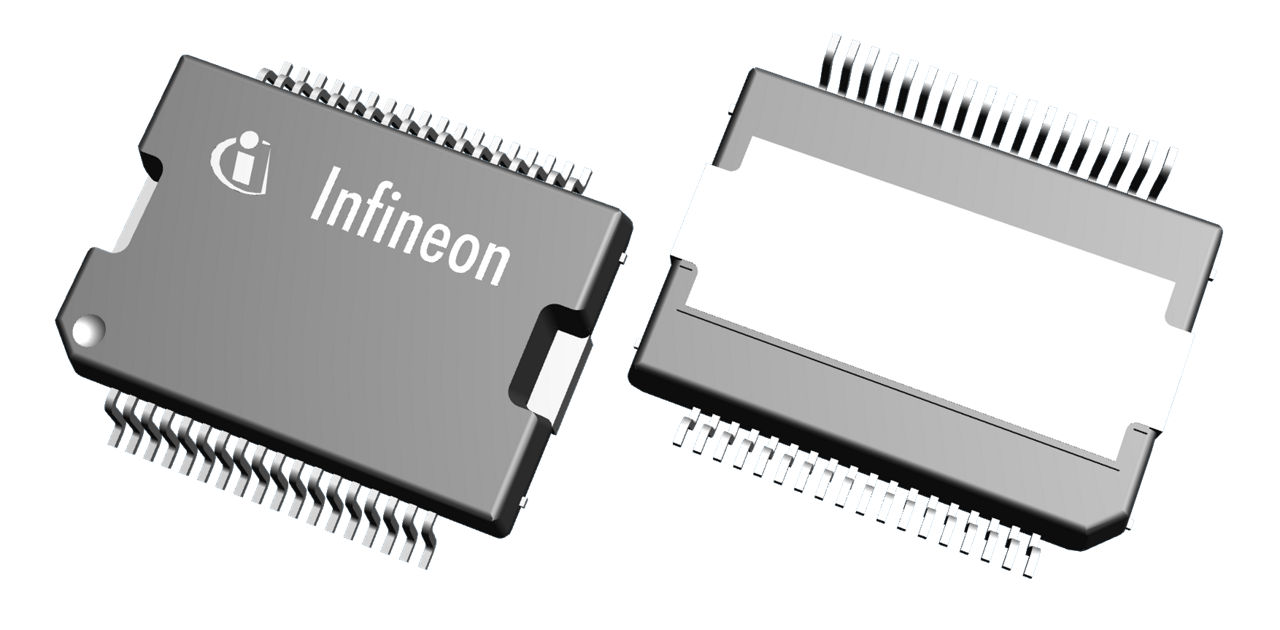

Infineon Package
PG-DSO-36
Package Name N/A
Packing Size 800
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status discontinued
Infineon Package
PG-DSO-36
Package Name -
Packing Size 800
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
The TLE6240GP is protected by embedded protection functions and designed for automotive and industrial applications. The output stages are controlled via SPI Interface. Additionally 8 channels can be controlled direct in parallel for PWM applications. Therefore the TLE6240GP is particularly suitable for engine management and powertrain systems, safety and body applications.

Features

  • Short Circuit Protection
  • Overtemperature Protection
  • Overvoltage Protection
  • 16 bit Serial Data Input and Diagnostic Output (2 bit/channel for Open Load- and Short to GND detection)
  • Direct Parallel Control of eight channels for PWM Applications
  • Parallel Inputs High or Low Active programmable
  • General Fault Flag
  • Low Quiescent Current
  • Compatible with 3 V Microcontrollers
  • Electrostatic discharge (ESD) Protection
  • Green Product (RoHS compliant)
  • AEC Qualified
