TLE49SRP3

XENSIV™ - TLE49SRI/C/S/R3 high-accuracy magnetic angle sensor with stray field robustness and flexible package/interface options
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE49SRP3
TLE49SRP3
ea.
Data Sheet

Product details

  • Classification
    ISO 26262-compliant
  • Interfaces
    PWM
  • Magnetic field
    10 mT to 90 mT
  • Package

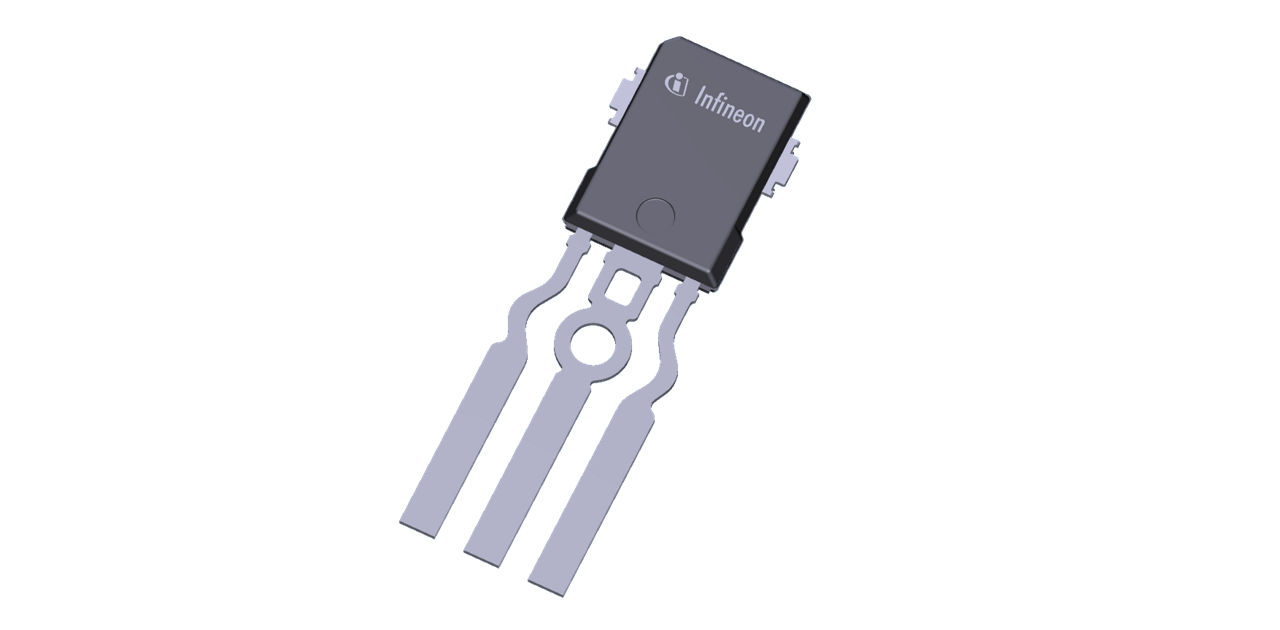

    PG-SSO-3
  • Currently planned availability until at least
    2038
  • Supply Voltage
    -21 V to 26 V
  • Technology
    Hall
  • Temperature
    -40 °C to 150 °C
Recommended
OPN
TLE49SRP3XTMA1
Product Status active and preferred
Infineon Package
PG-SSO-3
Package Name N/A
Packing Size 2000
Packing Type TAPE & REEL
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-SSO-3
Package Name -
Packing Size 2000
Packing Type TAPE & REEL
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
Electrification of cars with internal combustion engines and introduction of electric main drives increase electro-magnetic interference potential, causing issues for electronic sub systems. Differential Hall cells enable stray field robust magnetic field measurement. Signal conditioning and digital signal processing units ensure best performance and accuracy in harsh environments.

Features

  • Withstands mag. strayfield up to 8mT
  • Angle error<1°, with look up table<0.5°
  • Enables ASIL D compliant systems
  • Very low jitter delay ±1µs
  • Configurable latency 9.8µs ~ 26ms
  • Compensates package stress
  • Package includes silicon capacitors
  • Follows zero defect quality policy

Benefits

  • Saves cost for shielding
  • Safety mechanisms & error indication
  • Higher mech. production tolerance
  • Data synch with other sensors

Applications
