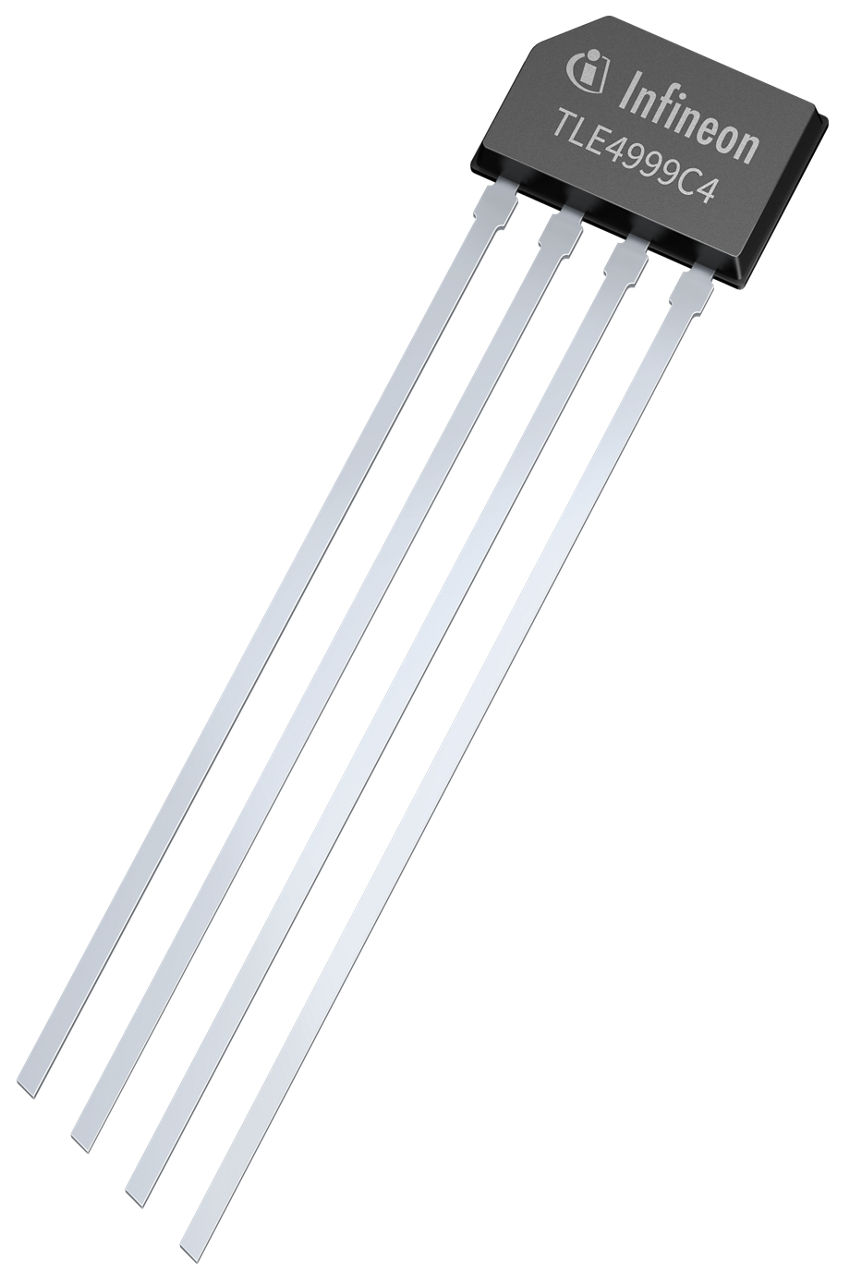

TLE4999C4

XENSIV™ - TLE4999C4 programmable dual channel linear Hall sensor for safety critical automotive applications
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE4999C4
TLE4999C4
ea.
Data Sheet

Product details

  • Applications
    Linear Hall
  • Classification
    ISO 26262-compliant
  • Interfaces
    SPC
  • Package
    Leaded
  • Currently planned availability until at least
    2038
  • Programmable
    yes
Recommended
OPN
TLE4999C4HALA1
Product Status active and preferred
Infineon Package
PG-SSO-4
Package Name N/A
Packing Size 2000
Packing Type AMMO-PACK
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-SSO-4
Package Name -
Packing Size 2000
Packing Type AMMO-PACK
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
TLE4999C4 is ISO 26262-compliant, offering high redundancy with two sensor elements on one chip. It ensures premium functional safety (up to ASIL D) with separate signal paths, plausibility checks, and diagnostic coverage. The digital SPC protocol based on SENT standard is provided on the OUT pin. Calibration via SICI after assembly, separate analog supply domains, and 4 output signal modes with CRC and a rolling counter are also supported.

Features

  • Measurement channels integrated on chip
  • Developed compliant to ISO 26262
  • High diagnostic coverage by plausibility
  • Digital SPC interface with min.0.5µs
  • Bus-capability for up to 4 sensor Ics
  • Selectable 12/14/16bit output signals
  • Operating junction temp -40°C to 150°C
  • Digital temperature&stress compensation
  • Voltage protection for VDD, GND&OUT pins
  • Programmable independently in EEPROM
  • Multipoint calibration up to 9 points
  • Frameholder mechanism
