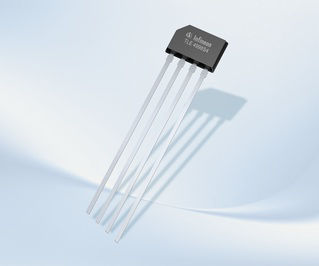

TLE4998S4

XENSIV™ - TLE4998S4 Linear Hall IC with on-board diagnostics, qualified according to AEC-Q100
Data Sheet
package
board

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE4998S4
TLE4998S4
Data Sheet

Product details

  • Applications
    Linear Hall
  • Budgetary Price €/1k
    1.66
  • Classification
    ISO 26262-ready
  • Interfaces
    SENT
  • Package
    Leaded
  • Currently planned availability until at least
    2033
  • Programmable
    yes
Recommended
OPN
TLE4998S4HALA1
Product Status active and preferred
Infineon Package
PG-SSO-4
Package Name N/A
Packing Size 2000
Packing Type AMMO-PACK
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-SSO-4
Package Name -
Packing Size 2000
Packing Type AMMO-PACK
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
XENSIV™ TLE4998S linear sensor is designed for precise rotation/position detection & current measurement. Provides digital SENT signal (SAE J2716 standard) with Hall value, temperature & status info. Output: open-drain, needs external pull-up for high level. Produced in high voltage BiCMOS tech with reverse-polarity protection. 16-bit DSP architecture & digital temperature compensation ensure excellent stability (16-bit res, internal stages up to 20 bits).

Features

  • SPC protocol with enhanced interface
  • 20-bit Digital Signal Processing (DSP)
  • Digital temperature compensation
  • 16-bit overall resolution
  • Operates within automotive temp range
  • Low drift of O/P signal over temperature
  • Programmable parameters stored in EEPROM
  • Supply voltage 4.5 - 5.5 V
  • Operation between -200mT&+200mT
  • Reverse-polarity&overvoltage protection
  • Output short-circuit protection
  • On-board diagnostics (overvoltage)

Benefits

  • Robust replacement of potentiometers
  • Resistant to humidity, temperature
  • Pollution and vibration

Applications
