TLE4983C-HTN E6747

XENSIV™ - TLE4983C-HTN E6747 Hall based camshaft sensor for SmCo backbias magnet, Nickel plated pins
Data Sheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE4983C-HTN E6747
TLE4983C-HTN E6747
Data Sheet

Product details

  • Additional Information
    TC_magnet -825ppm/K, Nickel plating
  • Applications
    Camshaft
  • C Package Available
    yes
  • Chopped Monocell
    yes
  • Direction Detection
    no
  • Enhanced ESD
    yes
  • Interfaces
    Voltage
  • Programmable
    yes
  • Technology
    Hall
  • True Power On
    yes
  • Type of Hysteresis
    hidden fixed
  • Vibration Suppression
    no
Recommended
OPN
TLE4983CHTNE6747HAMA1
Product Status active

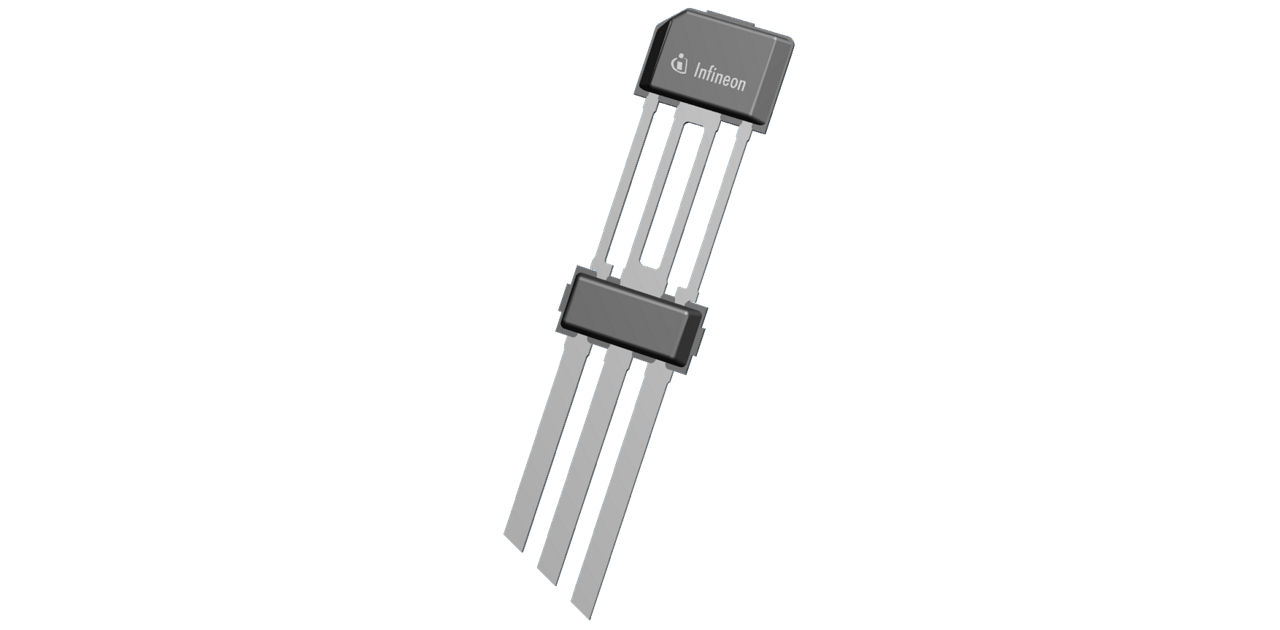

Infineon Package
PG-SSO-3
Package Name N/A
Packing Size 1500
Packing Type AMMO-PACK
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-SSO-3
Package Name -
Packing Size 1500
Packing Type AMMO-PACK
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
XENSIV™ TLE4983C magnetic sensor: Ideal for automotive camshaft applications. Maps gear/magnet wheel tooth/notch to unique electrical output. High accuracy & stability with chopped Hall technology. Electrical trimming sets switching points for power-on capability despite production spreads. Programmable temperature coefficient. Self-calibration for optimum accuracy. Two derivative available: TLE4983C-HT E6747, TLE4983C-HTN E6747 with Nickel plated pins.

Features

  • True Power On functionality (TPO)
  • Programmable switching points
  • Programmable temperature coefficient
  • Single chip solution
  • Automotive qualified
  • TIM for larger fabrication tolerances
  • High accuracy and high stability
  • High resistance to mechanical stress
  • Digital output signal(voltage interface)
  • Short-circuit protection
  • Enhanced ESD performance

Applications
