TLE4966V-1G

XENSIV™ - TLE4966V-1G in plane sensing with vertical dual Hall effect latch for automotive
Data Sheet
package
board
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE4966V-1G
TLE4966V-1G
ea.
Data Sheet

Product details

  • Bhyst
    5 mT
  • Bop
    2.5 mT
  • Brp
    -2.5 mT
  • Interfaces
    open collector
  • Product Description

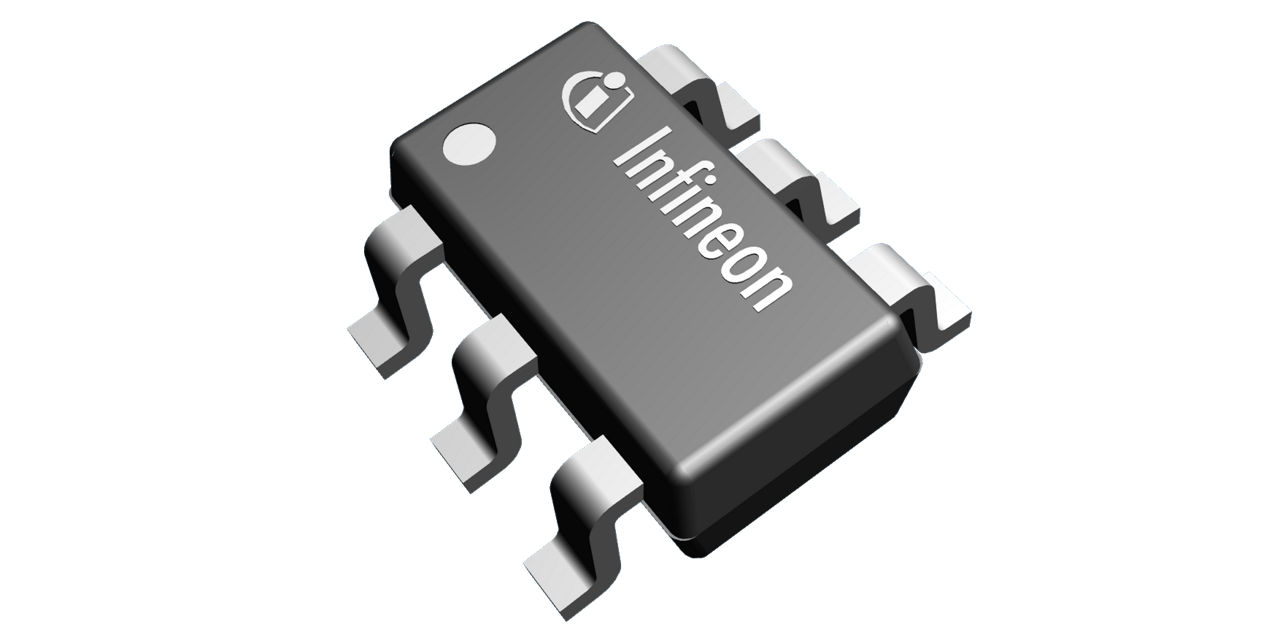

    High precision automotive qualified dual Hall latch in a gullwing package
  • Supply Voltage
    3.5 V to 32 V
  • Temperature
    -40 °C to 170 °C
  • Type
    Double Hall
Recommended
OPN
TLE4966V1GHTSA1
Product Status active and preferred
Infineon Package
PG-TSOP6-6
Package Name N/A
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free Yes
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-TSOP6-6
Package Name -
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
TLE4966V-1G magnetic sensor: Detects rotation direction & speed of pole wheel. On-chip Hall plates cancel mounting uncertainties & reduce tolerances. Built-in direction detection provides reliable signals. Speed signals can directly feed into microcontroller. Monolithic solution ensures minimal tolerances & high reliability.

Features

  • In-plane sensing for parallel encoder
  • Low current consumption
  • Direction detection
  • Speed output for index counting
  • 3.5V to 32V operating supply voltage
  • Operating from unregulated power supply
  • Active Error Compensation
  • Speed output for index counting apps
  • Low drift of magnetic thresholds
  • Low jitter (typ. 0.3us)
