TLE4966L

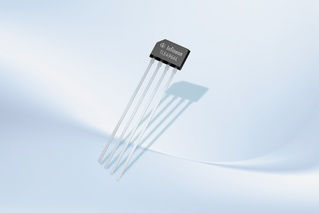

XENSIV™ - TLE4966L double Hall-effect sensor designed specifically for highly accurate applications
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE4966L
TLE4966L
ea.
Data Sheet

Product details

  • Bhyst
    15 mT
  • Bop
    7.5 mT
  • Brp
    -7.5 mT
  • Interfaces
    open collector
  • Language
    Magnetics
  • Online Simulation
    https://design.infineon.com/hallsim/
  • Currently planned availability until at least
    2033
  • Product Category
    Sensors
  • Product Description
    High precision automotive qualified dual Hall latch in a leaded package
  • Supply Voltage
    2.7 V to 24 V
  • Temperature
    -40 °C to 170 °C
  • Type
    Double Hall
Recommended
OPN
TLE4966LHALA1
Product Status active and preferred
Infineon Package
PG-SSO-4
Package Name N/A
Packing Size 2000
Packing Type AMMO-PACK
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-SSO-4
Package Name -
Packing Size 2000
Packing Type AMMO-PACK
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
TLE4966L is an integrated circuit double Hall-effect sensor designed specifically for highly accurate applications. Precise magnetic switching points and high temperature stability are achieved by active compensation circuits and chopper techniques on chip. The IC provides a speed signal at Q2 for every magnetic pole pair and a direction information at Q1, which is provided before the speed signal.

Features

  • 2.7 V to 24 V supply voltage operation
  • Operation from unregulated power supply
  • High sensitivity
  • Active error compensation
  • Reverse battery protection (-18 V)
  • Superior temperature stability
  • Low jitter (typ. 1 μs)
  • Digital output signals
  • Bipolar version
  • Excellent matching of the 2 Hall probes
  • Hall plate distance 1.45 mm
