TLE4961-4M

XENSIV™ - TLE4961-4M is a highly precise Hall latch, qualified according to AEC-Q100
Data Sheet
package
Multiple OPNs available
ea.

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE4961-4M
TLE4961-4M
ea.
Data Sheet

Product details

  • Bhyst
    20 mT
  • Bop
    10 mT
  • Brp
    -10 mT
  • Interfaces
    open collector
  • Language
    Magnetics
  • Planned to be available until at least
    2039
  • Product Category
    Sensors
  • Product Description
    High precision automotive qualified Hall latch
  • Supply Voltage
    3 V to 32 V
  • Temperature
    -40 °C to 170 °C
  • Type
    Latch
Recommended
OPN
TLE49614MXTSA1 TLE49614MXTMA1
Product Status active and preferred active and preferred
Infineon Package

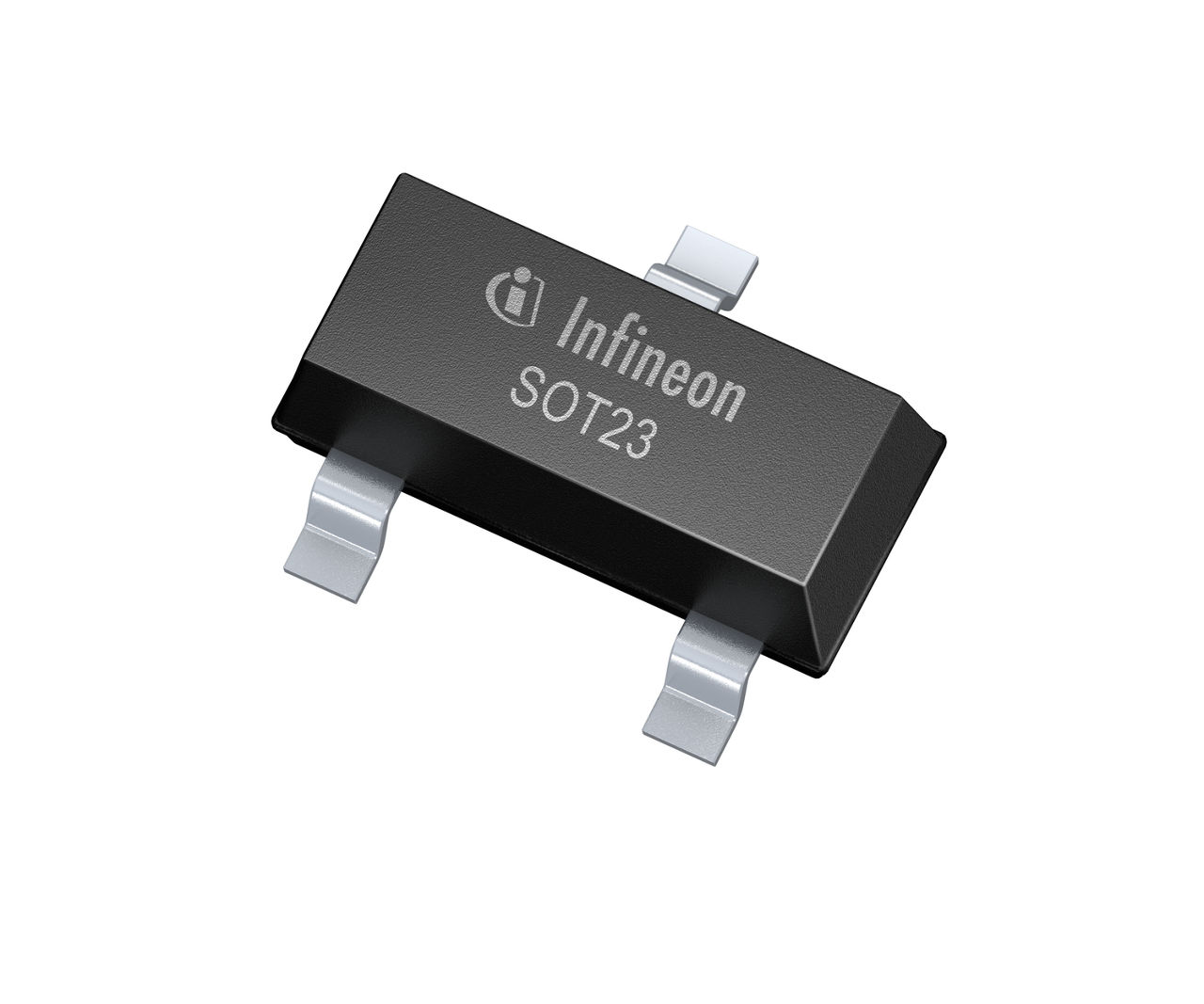

PG-SOT23-3
PG-SOT23-3
Package Name N/A N/A
Packing Size 3000 10000
Packing Type TAPE & REEL TAPE & REEL
Moisture Level 1 N/A
Moisture Packing NON DRY NON DRY
Lead-free Yes Yes
Halogen Free Yes Yes
RoHS Compliant Yes Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-SOT23-3
Package Name -
Packing Size 3000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock

Product Status
Active
Infineon Package
PG-SOT23-3
Package Name -
Packing Size 10000
Packing Type TAPE & REEL
Moisture Level -
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
The Infineon TLE4961-4M is an integrated Hall-effect latch, designed specifically for highly accurate applications in the automotive or industrial area. It operates with a supply voltage from 3.0 V to 32 V and its operates from unregulated power supply.

Features

  • 3.0 V to 32 V operating supply voltage
  • Operation from unregulated power supply
  • Reverse polarity protection (-18 V)
  • 42V overvoltage, no external resistor
  • Output overcurrent, overtemp protection
  • Active error compensation
  • Low jitter (typ. 0.35 μs)
  • High ESD performance
