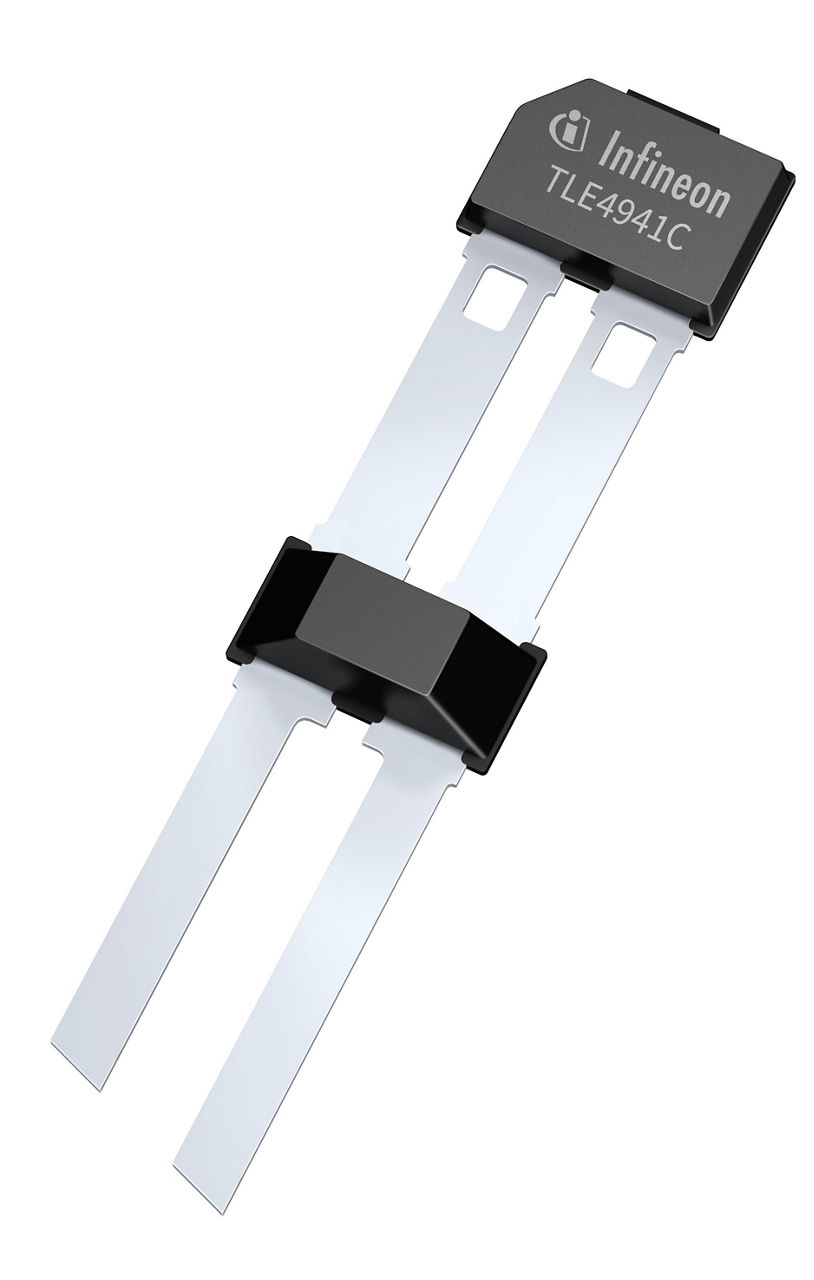

TLE4941C

XENSIV™ - TLE4941C magnetic speed sensor with dynamic self-calibration principle
Data Sheet
package

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE4941C
TLE4941C
Data Sheet

Product details

  • Applications
    ABS/Transmission
  • Budgetary Price €/1k
    1.09
  • C Package Available
    yes
  • Classification
    ISO 26262-ready
  • Interfaces
    Current
  • Planned to be available until at least
    2033
  • Technology
    Hall
  • Type of Hysteresis
    hidden fixed
Recommended
OPN
TLE4941CHAMA2
Product Status active
Infineon Package
PG-SSO-2
Package Name N/A
Packing Size 1500
Packing Type AMMO-PACK
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package
PG-SSO-2
Package Name -
Packing Size 1500
Packing Type AMMO-PACK
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
Infineon XENSIV™ TLE4941C provides information about rotational speed to modern vehicle dynamics control systems and ABS. The output has been designed as a two wire current interface. The sensor operates without external components and combines a fast power-up time with a low cut-off frequency. Excellent accuracy and sensitivity is specified for harsh automotive requirements as a wide temperature range, high ESD and EMC robustness.

Features

  • Two-wire current interface
  • Dynamic self-calibration principle
  • Single chip solution
  • No external components needed
  • High sensitivity
  • South &north pole pre-induction possible
  • High resistance to piezo effects
  • Large operating air-gaps
  • Wide operating temperature range
  • TLE4941C: 1.8 nF overmolded capacitor
