TLE4906L

XENSIV™ - TLE4906K/L are high precision Hall effect switches for high precision sensing ATV applications
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE4906L
TLE4906L
ea.
Data Sheet

Product details

  • Bhyst
    1.5 mT
  • Bop
    10 mT
  • Brp
    8.5 mT
  • Interfaces
    open collector
  • Language
    Magnetics
  • Online Simulation
    https://design.infineon.com/hallsim/
  • Currently planned availability until at least
    2033
  • Product Category
    Sensors
  • Product Description

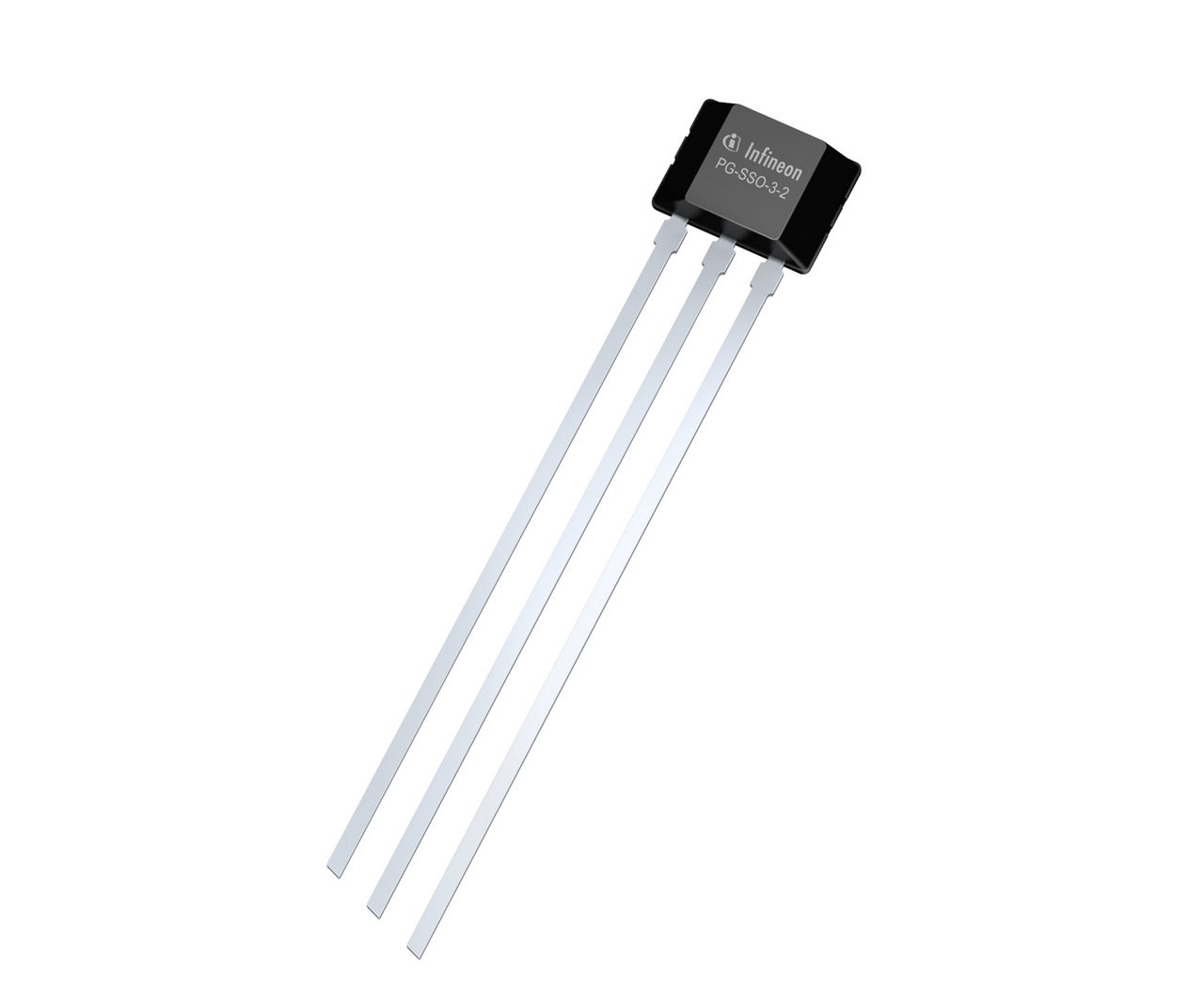

    Automotive qualified unipolar Hall switch in a leaded package
  • Supply Voltage
    2.7 V to 24 V
  • Temperature
    -40 °C to 170 °C
  • Type
    Unipolar
Recommended
OPN
TLE4906LHALA1
Product Status active and preferred
Infineon Package
PG-SSO-3
Package Name N/A
Packing Size 2000
Packing Type AMMO-PACK
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-SSO-3
Package Name -
Packing Size 2000
Packing Type AMMO-PACK
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
XENSIV™ TLE4906K/L are high precision Hall effect switches with highly accurate switching thresholds for operating temperatures up to 150°C. Target applications for TLE4906 are all automotive applications which require a high precision Hall switch for position sensing with a operating temperature range from -40°C to +150°C. They come in two different package options: TLE4906K in a SC59 packageTLE4906L in a PG-SSO-3-2

Features

  • 2.7V to 24V supply voltage
  • Operation from unregulated power supply
  • High stability of the magnetic switching
  • High resistance to mechanical stress
  • Reverse battery protection (-18V)
  • Superior temperature stability
  • Low jitter (typ. 1μs)
  • High ESD performance (± 6kV HBM)
  • Digital output signal
  • SMD package SC59 (SOT23 compatible)
  • Leaded package PG-SSO-3-2 - (TLE4906L)
