TLE4678-2EL

The TLE4678-2EL is a monolithic integrated low dropout fixed output voltage regulator for loads up to 200 mA.
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE4678-2EL
TLE4678-2EL
ea.
Data Sheet

Product details

  • Accuracy
    2 %
  • Budgetary Price €/1k
    0.74
  • Dropout Voltage
    120 mV
  • Early Warning
    no
  • Enable (=Inhibit)
    no
  • Family
    OPTIREG™ linear General Purpose
  • Hold
    no
  • Operating Temperature
    -40 °C to 150 °C
  • Operating Voltage
    3.3 V to 45 V
  • Output Current max
    200 mA
  • Output Voltage Type
    5.0 V
  • Over Voltage Protection
    no
  • Planned to be available until at least
    2038
  • Power Fail
    no
  • Power Good
    no
  • Qualification
    Automotive
  • Quiescent Current
    60 µA
  • Regulator Type
    General Purpose
  • Reset
    yes
  • Status Output
    no
  • Watchdog
    yes
Recommended
OPN
TLE46782ELXUMA1
Product Status active and preferred
Infineon Package
PG-SSOP-14
Package Name N/A
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-SSOP-14
Package Name -
Packing Size 2500
Packing Type TAPE & REEL
Moisture Level 3
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The TLE4678-2EL is designed to supply microprocessor systems in automotive environments. It integrates reset, watchdog, and protection circuits. The watchdog is disabled when output current drops below a programmable threshold. Reset threshold can be modified with optional resistor divider. Available in PG-SSOP-14 exposed pad package. TLE4278-2, also available as TLE4678-2LD, is offered in PG-TSON-10 exposed pad package with thermal performance.

Features

  • Output Voltage 5 V ± 2%
  • Current Capability 200 mA
  • Ultra Low Current Consumption
  • Very Low Dropout Voltage
  • Monitoring a Microprocessor
  • Reset Circuit Sensing the Output Voltage
  • Reset Output Active Low Down to VQ = 1 V
  • Separated Reset and Watchdog Output
  • Excellent Line Transient Robustness
  • Reverse Polarity Protection
  • Short Circuit Protected

Benefits

  • Robust protection features
  • Wide input & temp range operation

Diagrams

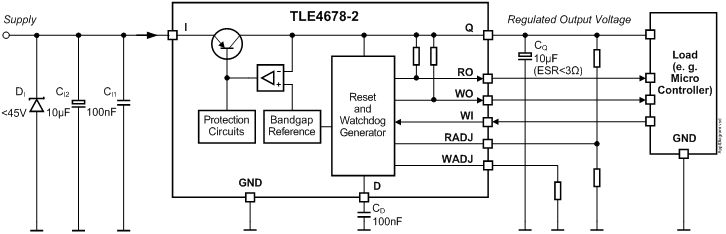

TLE4678-2EL_blockdiagram
