Active and preferred
RoHS Compliant

TLE4675G

The TLE4675G is a monolithic integrated low drop out fixed output voltage regulator for loads up to 400 mA.
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE4675G
TLE4675G
ea.
Data Sheet

Product details

  • Accuracy
    2 %
  • Base Product
    TLE4675x
  • Budgetary Price €/1k
    1.18
  • Dropout Voltage
    250 mV
  • Early Warning
    no
  • Enable (=Inhibit)
    no
  • Family
    OPTIREG™ linear General Purpose
  • Hold
    no
  • Operating Temperature
    -40 °C to 150 °C
  • Operating Voltage
    5.5 V to 45 V
  • Output Current max
    400 mA
  • Output Voltage Type
    5.0 V
  • Over Voltage Protection
    no
  • Planned to be available until at least
    2038
  • Power Fail
    no
  • Power Good
    no
  • Qualification
    Automotive
  • Quiescent Current
    65 µA
  • Regulator Type
    General Purpose
  • Reset
    yes
  • Status Output
    no
  • Watchdog
    no
Recommended
OPN
TLE4675GATMA1
Product Status active and preferred
Infineon Package
PG-TO263-5
Package Name N/A
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-TO263-5
Package Name -
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The integrated reset function, as well as several protection circuits combined with the wide operating temperature range offered by the TLE4675 make it suitable for supplying microprocessor system in automotive environments.

Features

  • Output Voltage 5 V ± 2%
  • Output Current Capability 400 mA
  • Ultra Low Current Consumption
  • Very Low Drop Out Voltage
  • Reset Circuit Sensing the Output Voltage
  • O/P Active Low Down to VQ=1V
  • Excellent Line Transient Robustness
  • I ≤ +45 V
  • Reverse Polarity Protection
  • Short Circuit Protected
  • Over temperature Shutdown
  • Temperature R -40≤ T j ≤150°C

Benefits

  • Robust Protection Features
  • Wide input & temp range operation

Applications

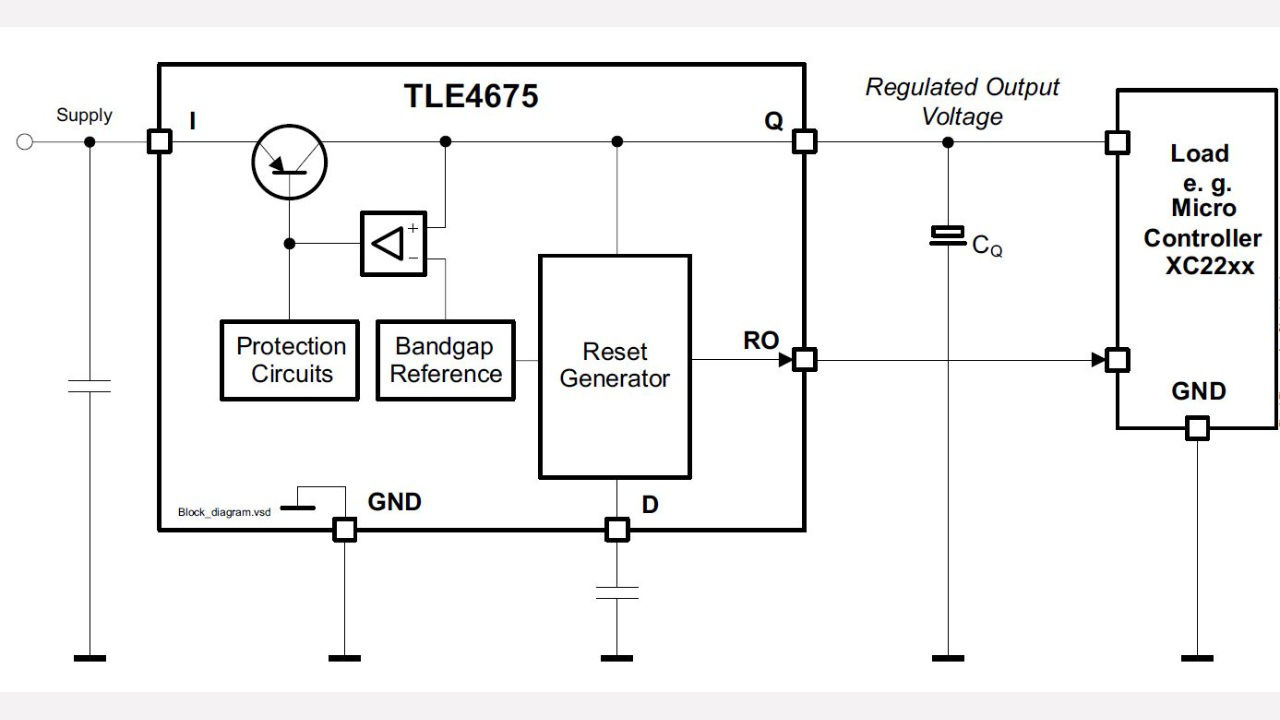

Diagrams
