Active and preferred
RoHS Compliant

TLE4271-2G

The TLE4271-2G is functional and electrical identical to TLE4271.The device is a 5-V low drop fixed voltage regulator.
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TLE4271-2G
TLE4271-2G
ea.

Product details

  • Accuracy
    2 %
  • Budgetary Price €/1k
    1.21
  • Dropout Voltage
    350 mV
  • Early Warning
    no
  • Enable (=Inhibit)
    yes
  • Family
    OPTIREG™ linear General Purpose
  • Hold
    no
  • Operating Temperature
    -40 °C to 150 °C
  • Operating Voltage
    6 V to 40 V
  • Output Current max
    550 mA
  • Output Voltage Type
    5.0 V
  • Over Voltage Protection
    yes
  • Currently planned availability until at least
    2038
  • Power Fail
    no
  • Power Good
    no
  • Qualification
    Automotive
  • Quiescent Current
    800 µA
  • Regulator Type
    Application Specific - 24V
  • Reset
    yes
  • Status Output
    no
  • Watchdog
    yes
OPN
TLE42712GATMA1
Product Status active and preferred
Infineon Package
Package Name N/A
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
ea. in stock

Product Status
Active
Infineon Package
Package Name -
Packing Size 1000
Packing Type TAPE & REEL
Moisture Level 1
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
The maximum input voltage is 42 V (65 V, ≤ 400 ms). Up to an input voltage of 26 V and for an output current up to 550 mA it regulates the output voltage within a 2% accuracy. The short circuit protection limits the output current of more than 650 mA.

Features

  • Output voltage tolerance ≤ ± 2%
  • Low-drop voltage
  • Integrated overtemperature protection
  • Reverse polarity protection
  • Input voltage up to 42 V
  • Overvoltage protection up to 65V(≤400ms)
  • Short-circuit proof
  • Suitable use in automotive electronics
  • Wide temperature range
  • Adjustable reset and watchdog time
  • Green Product (RoHS compliant)
  • AEC Qualified

Benefits

  • Robust protection features
  • Integrated overvoltage detection

Diagrams

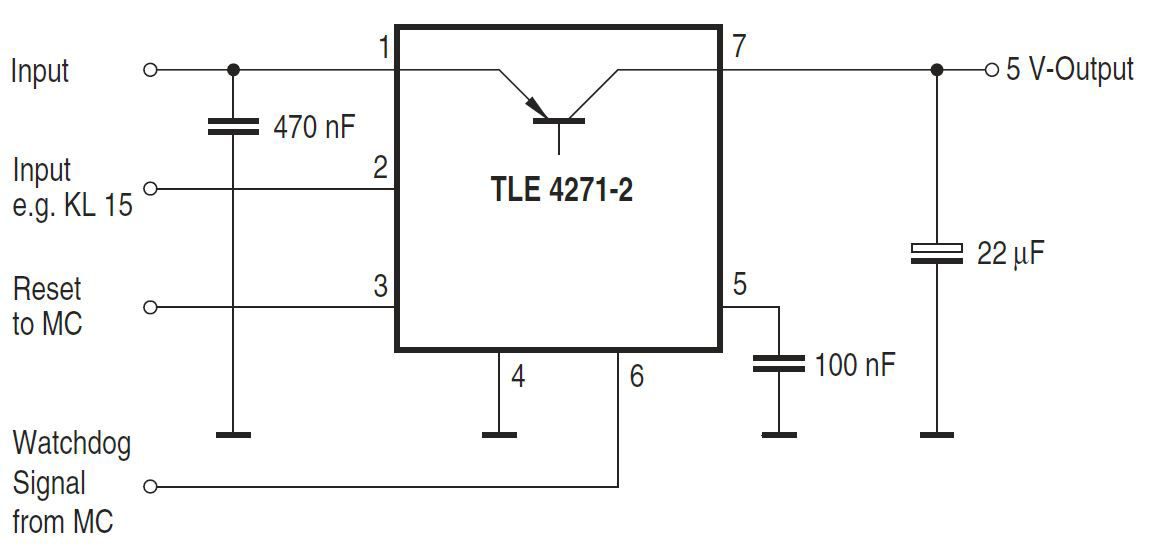

TLE4271-2-Application-Diagram
TLE4271-2-Application-Diagram
TLE4271-2-Application-Diagram TLE4271-2-Application-Diagram TLE4271-2-Application-Diagram

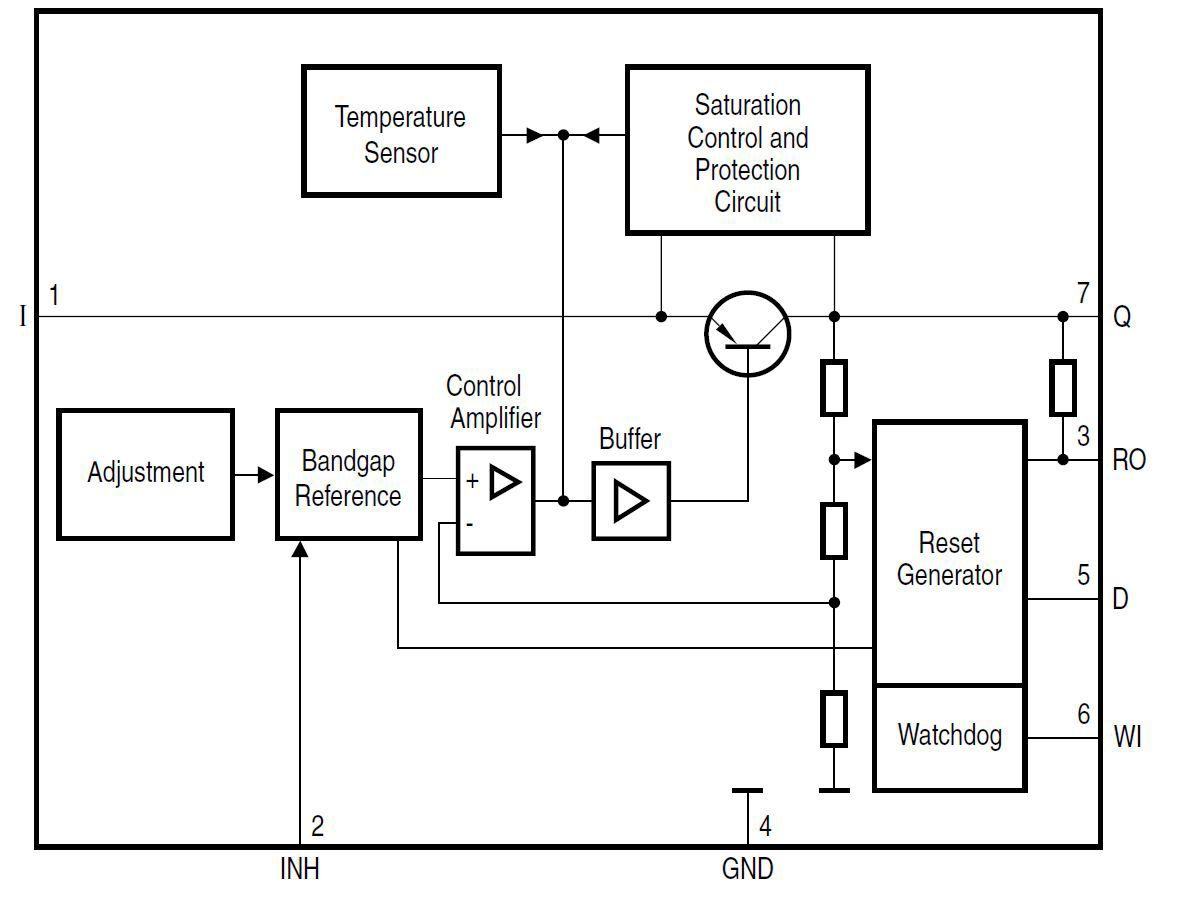

TLE4271-2-Block-Diagram TLE4271-2-Block-Diagram TLE4271-2-Block-Diagram
