Active
RoHS Compliant

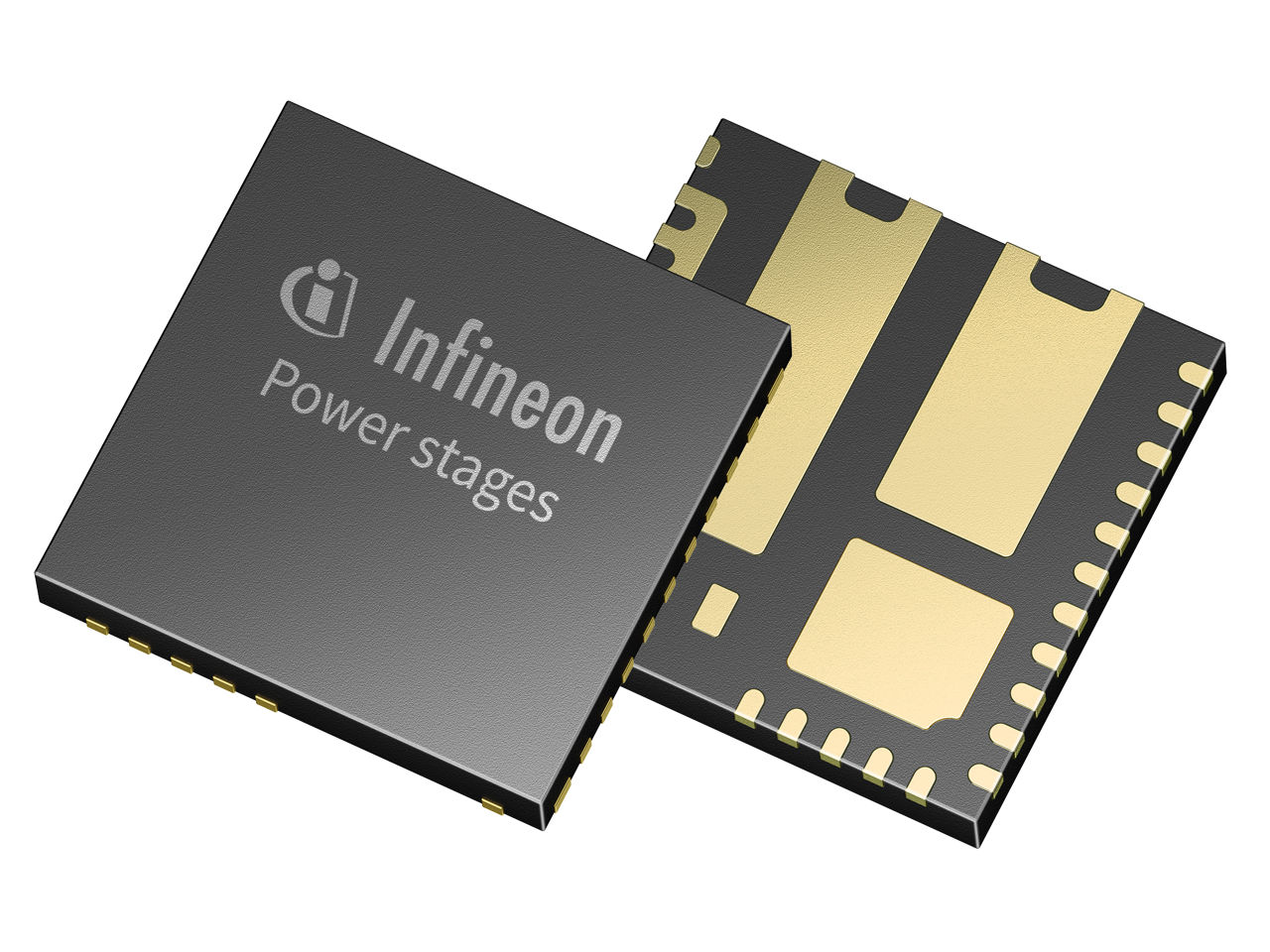

TDA21490

OptiMOS™ integrated power stage with best-in-class efficiency and thermal performance
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TDA21490
TDA21490
ea.
Data Sheet

Product details

  • Input Voltage
    4.25 V to 16 V
  • Iout
    90 A
  • Package
    PQFN 5 X 6
  • Qualification
    Industrial
  • Switching Frequency
    100 kHz to 1500 kHz
Recommended
OPN
TDA21490AUMA1
Product Status active
Infineon Package
PG-IQFN-39
Package Name N/A
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 2
Moisture Packing DRY
Lead-free No
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
PG-IQFN-39
Package Name -
Packing Size 5000
Packing Type TAPE & REEL
Moisture Level 2
Moisture Packing DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
TDA21490 enables robust and reliable voltage regulator design for high-performance xPUs, ASICs and SoCs. TDA21490 offers best-in-class efficiency with OptiMOSTM power MOSFETs in a thermally efficient package. In addition to the robust OptiMOSTM MOSFET technology, TDA21490’s extensive fault protection capability further increases robustness and reliability of the systems in which it is used.

Features

  • Output peak current capability up to 90A
  • Superior current sense (5 mV/A) accuracy
  • Input voltage range of 4.25-16V
  • Vcc & Vdrv supply of 4.25 V to 5.5 V
  • Output voltage range 0.25-5.5 V
  • Output DC current capability of 70 A
  • 8-mV/°C temperature analog output
  • Extensive fault protection
  • Bootstrap capacitor Auto-replenishment
  • Common footprint (5x6 mm PQFN)

Benefits

  • Reduced total cost of ownership
  • Long-term reliability
  • Superior system performance
  • Faster diagnostics
  • Deep-sleep mode for power saving
  • Deep-sleep mode for power saving
