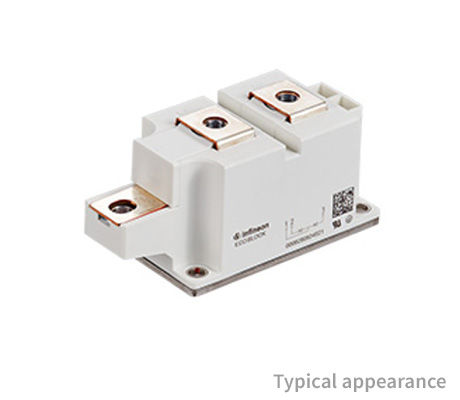

TD320N16SOF

50 mm Thyristor/Diode Module with 1600 V in solder bond technology
Data Sheet
package
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

TD320N16SOF
TD320N16SOF
ea.
Data Sheet

Product details

  • (diT/dt)cr [A/µs] (@DIN IEC 747- 6)
    100
  • Configuration
    SCR / Diode Phase Control
  • Housing
    50 mm
  • IFAVM/TC / ITAVM/TC [A/°C] (@180° el sin)
    320/85
  • IFSM / ITSM [A] (@10ms, Tvj max)
    8200
  • Product Line
    Eco Block
  • rT [mΩ] (@Tvj max)
    0.58
  • RthJC [K/W] (@180° el sin)
    0.11
  • Tvj [°C]
    130
  • VDRM / VRRM [V]
    1600
  • VT0 [V] (@Tvj max)
    0.77
  • ∫I2dt [A²s · 103] (@10ms, Tvj max)
    335
Recommended
OPN
TD320N16SOFHPSA1
Product Status active and preferred
Infineon Package
BG-PB50SB-1
Package Name N/A
Packing Size 3
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free No
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package
BG-PB50SB-1
Package Name -
Packing Size 3
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
Thyristor/Diode 50 mm Eco Block 1600 V, 320 A module for phase control in solder bond technology . This module is also available with pre-applied Thermal Interface Material . If you need additional features or higher performance go to pressure contact technology .

Features

  • Solder bond technology
  • Industrial standard package
  • Electrically insulated base plate
  • Copper base plate
