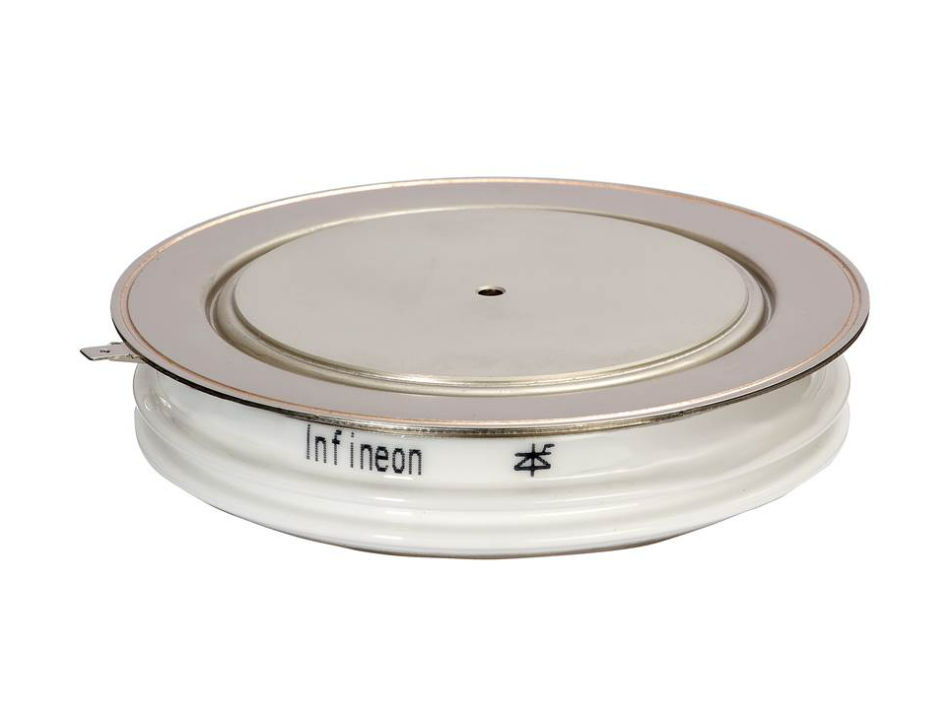

T3841N18TOF VT

1800 V phase control thyristor disc
Data Sheet
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

T3841N18TOF VT
T3841N18TOF VT
ea.
Data Sheet

Product details

  • Clamping force [kn]
    42 to 95
  • Configuration
    Electrical Triggered Phase Control Thyristor
  • Housing
    Disc dia 120mm height 26mm / Ceramic
  • ITAVM/TC [A/°C] (@180° el sin)
    4040/85
  • ITAVM
    4040 (180 ° el sin)
  • ITSM [A] (@10ms, Tvj max)
    57000
  • ITSM
    57000 A
  • rT [mΩ] (@Tvj max) max
    0.08
  • RthJC [K/kW] (@180° el sin) max
    7.74
  • tq [µs]
    250
  • Tvj [°C] max
    125
  • VDRM / VRRM [V]
    1800
  • VDRM/ VRRM (V)
    1800 V
  • VT/IT [V/kA] (@Tvj max)
    1.28/6.0
  • VT0 [V] (@Tvj max) max
    8
  • ∫I2dt [A²s · 103] (@10ms, Tvj max)
    16245
Recommended
OPN
T3841N18TOFVTXPSA1
Product Status active and preferred
Infineon Package BG-T12026K-1
Package Name N/A
Packing Size 2
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package BG-T12026K-1
Package Name -
Packing Size 2
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
Phase control thyristor 1800 V, 4040 A with 120 mm diameter in a ceramic housing. The power disc is specially optimized for high current rectifier within the water electrolysis process.

Features

  • Full blocking capability 50/60 Hz
  • High DC blocking stability
  • High turn-on di/dt capability
  • High dv/dt capability
