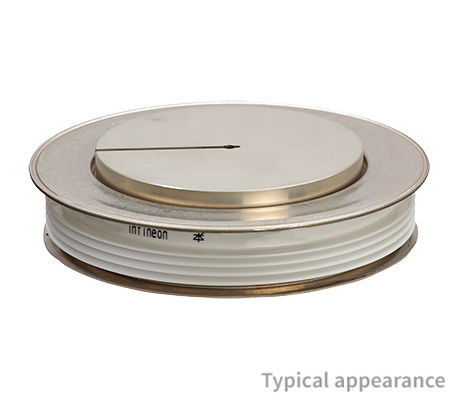

T2563NH80TOH

8000 V Light Triggered Phase Control Thyristor Diode Disc
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

T2563NH80TOH
T2563NH80TOH
Data Sheet

Product details

  • Clamping force [kn]
    90 to 130
  • Configuration
    Light Triggered Phase Control Thyristor
  • Housing
    Disc dia 172mm height 40mm / Ceramic
  • ITAVM/TC [A/°C] (@180° el sin)
    2300/85
  • ITAVM
    2300 (180 ° el sin)
  • ITSM [A] (@10ms, Tvj max)
    90000
  • ITSM
    90000 A
  • rT [mΩ] (@Tvj max) max
    0.35
  • RthJC [K/kW] (@180° el sin) max
    4.8
  • tq [µs]
    550
  • Tvj [°C] max
    120
  • VDRM / VRRM [V]
    8000
  • VDRM/ VRRM (V)
    8000 V
  • VT/IT [V/kA] (@Tvj max)
    2.95/5.0
  • VT0 [V] (@Tvj max) max
    1.2
  • ∫I2dt [A²s · 103] (@10ms, Tvj max)
    40500
Recommended
OPN
T2563NH80TOHXOSA1
Product Status active and preferred
Infineon Package BG-T17240L-1
Package Name N/A
Packing Size 1
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package BG-T17240L-1
Package Name -
Packing Size 1
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
Light Triggered Thyristor discs 8000 V, 2300 A with a dia of 172 mm and a height of 40 mm in high reliable, robust and hermetic sealed ceramic housing.

Features

  • Full blocking capability 50/60 Hz*
  • High DC blocking stability
  • High case non-rupture current
  • High turn-on di/dt capability
  • High surge current capability
  • High di/dt capability
  • High dv/dt capability
  • *over a wide temperature range
