T2200N16H100

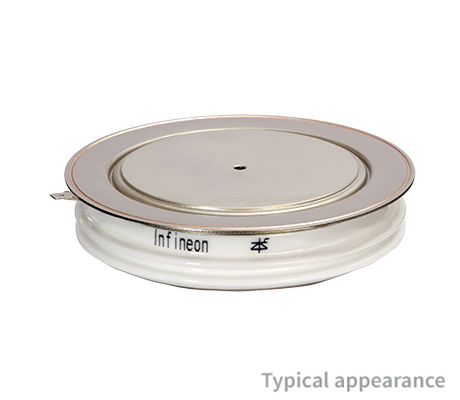

1600 V phase control thyristor disc
Data Sheet
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

T2200N16H100
T2200N16H100
ea.
Data Sheet

Product details

  • Clamping force [kn]
    30 to 45
  • Housing
    Disc dia 100mm height 26mm / Ceramic
  • ITAVM/TC [A/°C] (@180° el sin)
    2170/85
  • ITAVM
    2170 (180 ° el sin)
  • ITSM [A] (@10ms, Tvj max)
    44000
  • RthJC [K/kW] (@180° el sin) max
    12.6
  • Tvj [°C] max
    125
  • VDRM / VRRM [V]
    1600
  • VDRM/ VRRM (V)
    1600 V
  • ∫I2dt [A²s · 103] (@10ms, Tvj max)
    9680
Recommended
OPN
T2200N16H100XPSA1
Product Status active and preferred
Infineon Package BG-T10026K-1
Package Name N/A
Packing Size 2
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package BG-T10026K-1
Package Name -
Packing Size 2
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
Phase Control Thyristor 1600 V, 2200 A with 100 mm diameter and a height of 26 mm assembled in high reliable, robust and hermetic sealed ceramic housings. The T2200N thyristor disc is specially optimized for UPS-Bypass applications in terms of production effort and clamping force allowing same on state losses with smaller clamping systems. Our pressure contact chips in general provide best-in-class blocking stability and offers the highest current capability.

Features

  • Full blocking 50/60Hz over a wide range temperature range
  • High DC blocking stability
  • High surge current capability
  • Industial standard package

Benefits

  • Easy system power scaling by special designs for series- and parallel connection
  • Fuseless design possible due to high overload capability
  • Minimized maintenance and reduced downtime due to high reliability
