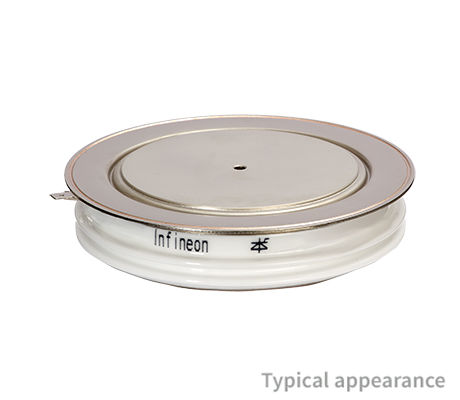

T2180N16TOF VT

1600 V phase control thyristor disc
Data Sheet
ea.
in stock

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

T2180N16TOF VT
T2180N16TOF VT
ea.
Data Sheet

Product details

  • Clamping force [kn]
    30 to 65
  • Configuration
    Electrical Triggered Phase Control Thyristor
  • Housing
    Disc dia 100mm height 26mm / Ceramic
  • ITAVM/TC [A/°C] (@180° el sin)
    2180/85
  • ITAVM
    2180 (180 ° el sin)
  • ITSM [A] (@10ms, Tvj max)
    36000
  • ITSM
    38000 A
  • rT [mΩ] (@Tvj max) max
    0.106
  • RthJC [K/kW] (@180° el sin) max
    12.5
  • tq [µs]
    250
  • Tvj [°C] max
    125
  • VDRM / VRRM [V]
    1600
  • VDRM/ VRRM (V)
    1600 V
  • VT/IT [V/kA] (@Tvj max)
    2.05/8.0
  • VT0 [V] (@Tvj max) max
    0.9
  • ∫I2dt [A²s · 103] (@10ms, Tvj max)
    7220
Recommended
OPN
T2180N16TOFVTXPSA1
Product Status active and preferred
Infineon Package BG-T11035-1
Package Name N/A
Packing Size 2
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:
 ea. in stock

Product Status
Active
Infineon Package BG-T11035-1
Package Name -
Packing Size 2
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
ea.
in stock
Phase Control Thyristor 1600 V, 2180 A with 100 mm diameter and a height of 26 mm assembled in high reliable, robust and hermetic sealed ceramic housings. The T2600N prime disc is specially optimized for UPS-Bypass applications and offers the highest current capability in the market. The T2600N16TOF prime disc is specially optimized for UPS-Bypass applications and offers the highest current capability in the market.

Features

  • Full blocking capability 50/60 Hz
  • High DC blocking stability
  • High surge current capability
  • High turn-on di/dt capability
  • High dv/dt capability
