T1503N80TOH PR

8000 V Light Triggered Phase Control Thyristor Diode Disc
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

T1503N80TOH PR
T1503N80TOH PR
Data Sheet

Product details

  • Clamping force [kn]
    63 to 91
  • Configuration
    Light Triggered Phase Control Thyristor
  • Housing
    Disc dia 150mm height 40mm / Ceramic
  • ITAVM/TC [A/°C] (@180° el sin)
    1770/85
  • ITAVM
    1770 (180 ° el sin)
  • ITSM [A] (@10ms, Tvj max)
    55000
  • ITSM
    55000 A
  • rT [mΩ] (@Tvj max) max
    0.44
  • RthJC [K/kW] (@180° el sin) max
    6.3
  • tq [µs]
    550
  • Tvj [°C] max
    120
  • VDRM / VRRM [V]
    8000
  • VDRM/ VRRM (V)
    8000 V
  • VT/IT [V/kA] (@Tvj max)
    3.00/4.0
  • VT0 [V] (@Tvj max) max
    1.24
  • ∫I2dt [A²s · 103] (@10ms, Tvj max)
    15125
Recommended
OPN
T1503N80TOHPRXPSA1
Product Status active and preferred
Infineon Package BG-T15040L-1
Package Name N/A
Packing Size 1
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead-free Yes
Halogen Free Yes
RoHS Compliant Yes
Infineon stock last updated:

Product Status
Active
Infineon Package BG-T15040L-1
Package Name -
Packing Size 1
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
Light Triggered Thyristor discs 8000 V, 1770 A with 150 mm diameter and height of 40 mm in high reliable, robust and hermetic sealed ceramic housing.

Features

  • Full blocking capability 50/60 Hz
  • High DC blocking stability
  • High case non-rupture current
  • High turn-on di/dt capability
  • High surge current capability
  • High di/dt capability
  • High dv/dt capability

Diagrams

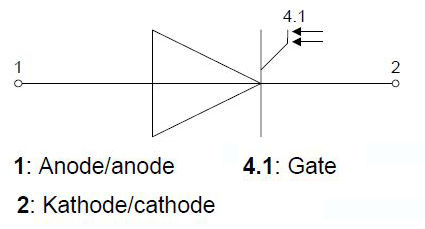

Circuit_diagram_Thyristor
Circuit_diagram_Thyristor
Circuit_diagram_Thyristor Circuit_diagram_Thyristor Circuit_diagram_Thyristor
×
