STT1400N16P55

55 mm Thyristor/Thyristor Module with 1600 V in pressure contact technology
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

STT1400N16P55
STT1400N16P55
Data Sheet

Product details

  • (diT/dt)cr [A/µs] (@DIN IEC 747- 6)
    250
  • Configuration
    W1C
  • Contact Technology
    Pressure Contact
  • Ioverload (21s) [A]
    1300
  • ITSM [A] (@10ms, Tvj max)
    9000
  • rT [mΩ] (@Tvj max)
    0.49
  • RthJA (21s) [W/K ] max
    0.123
  • RthJC [K/W] (@180° el sin) max
    0.093
  • Tvj [°C] max
    155
  • Voltage Class
    1600 V
  • VT [V/kA]
    1.39/1
  • VT0 [V] (@Tvj max)
    0.9
  • ∫I2dt [A²s · 103] (@10ms, Tvj max)
    405
Recommended
OPN
STT1400N16P55HPSA1 STT1400N16P55XPSA1
Product Status active and preferred discontinued
Infineon Package BG-PS55A-1 BG-PS55-1
Package Name N/A N/A
Packing Size 1 1
Packing Type TRAY TRAY
Moisture Level NA NA
Moisture Packing NON DRY NON DRY
Lead-free Yes Yes
Halogen Free No Yes
RoHS Compliant Yes Yes
Infineon stock last updated:

Product Status
Active
Infineon Package BG-PS55A-1
Package Name -
Packing Size 1
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant

Product Status discontinued
Infineon Package BG-PS55-1
Package Name -
Packing Size 1
Packing Type TRAY
Moisture Level NA
Moisture Packing NON DRY
Lead Free
Halogen Free
RoHS Compliant
Thyristor/Thyristor 55 mm Power Start 1600 V, 1400 A module for soft start applications in pressure contact technology. Main benefit of the design concept in comparison to existing soft starter solutions is one slim foot-print (55 mm) fitting 1400 A starting current which allows contactor compatible designs (LxWxH 134x55x100 mm).If you need higher blocking voltage go to STT1400N18P55 .

Features

  • One slim foot-print
  • Reduction to essential components
  • Integrated heatsink
  • No thermal grease
  • Thermal capa. coupled to silicon
  • Double side cooling

Applications

Motor control

Diagrams

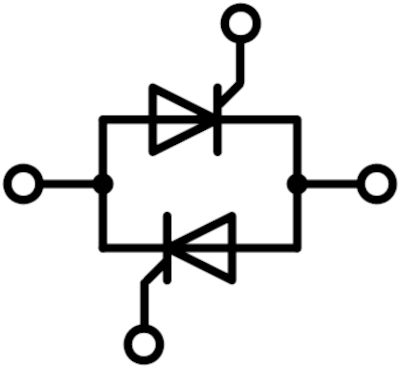

Circuit-Diagram-Soft-Starter_W1C
Circuit-Diagram-Soft-Starter_W1C
Circuit-Diagram-Soft-Starter_W1C Circuit-Diagram-Soft-Starter_W1C Circuit-Diagram-Soft-Starter_W1C
×
