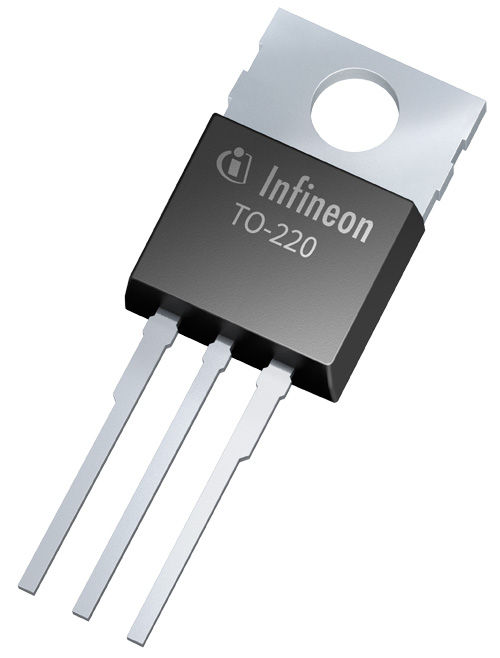

SPP15P10P H

P-Channel Power MOSFET -100 V in TO-220 package
Data Sheet

Content could not be loaded

Unfortunately, we were unable to load the content for this section. You may want to refresh the page or try again later.

SPP15P10P H
SPP15P10P H
Data Sheet

Product details

  • Ciss
    961 pF
  • Coss
    237 pF
  • ID max
    -15 A
  • IDpuls max
    -60 A
  • Package
    TO-220
  • Ptot max
    128 W
  • QG
    37 nC
  • RDS (on) max
    240 mΩ
  • Rth
    1.17 K/W
  • VDS max
    -100 V
  • VGS(th)
    -4 V to -2.1 V
OPN
Product Status
Infineon Package
Package Name
Packing Size
Packing Type
Moisture Level
Moisture Packing
Lead-free
Halogen Free
RoHS Compliant
Infineon stock last updated:
Infineon’s highly innovative OptiMOS™ families include p-channel power MOSFETs. These products consistently meet the highest quality and performance demands in key specifications for power system design such as on-state resistance and figure of merit characteristics.

Features

  • Enhancement mode
  • Logic level
  • Avalanche rated
  • Fast switching
  • Dv/dt rated
  • Pb-free lead-plating
  • RoHS compliant, Halogen-free
  • Qualified according to AEC Q101

Applications
